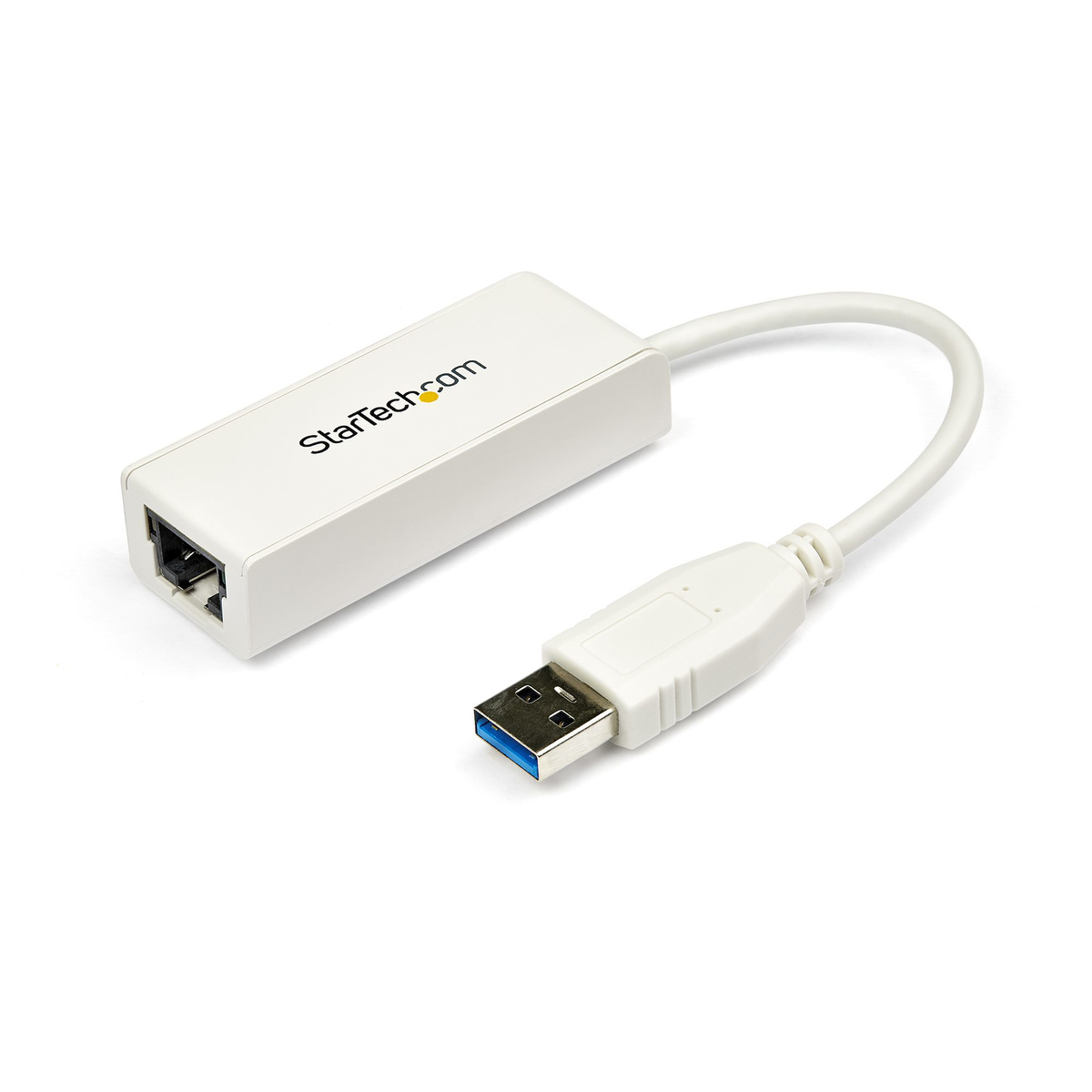

Startech USB 3.0 to Gigabit Ethernet NIC Network Adapter - White

Startech USB 3.0 to Gigabit Ethernet NIC Network Adapter - White

Add Gigabit Ethernet network connectivity to a Laptop or Desktop through a USB 3.0 portThe USB31000SW USB 3.0 to Gigabit Ethernet Adapter adds a single RJ45 Ethernet port to a USB-enabled computer system, with support for Gigabit network connections at full bandwidth when used with a USB 3.0 host connection, unlike USB 2.0 adapters.This compact USB 3.0 network adapter is backward compatible with older USB 2.0/1.x computer systems (speed limited by USB bus), making it the ideal portable replacement network adapter or laptop accessory. Plus, with support for features such as Jumbo Frames, VLAN tagging and Wake on LAN (WOL), the adapter offers versatile Gigabit network performance for home and business users alike.The USB31000SW USB 3.0 Gigabit adapter is backed by a StarTech.com 2-year warranty and free lifetime technical support.The StarTech.com Advantage

Features


USB NETWORK ADAPTER: USB to RJ45 adapter adds an Ethernet port to your computer supporting up to Gigabit speeds on 10/100/1000 Mbps Networks; Ideal for reliable wired gigabit network connections, or as an alternative to WiFi


FULL FEATURED: USB to Ethernet dongle; Uses ASIX AX88179A Chipset for native compatibility with laptops and desktops, and 2-in-1's computers; USB Bus Powered; Status & Activity LED's indicators


OS COMPATIBILITY: USB NIC adapter for laptop; Works with Windows versions 7 and up, Windows Server, macOS 10.14 and up, Linux distributions with kernel 4.11 and up (LTS only), and ChromeOS, TAA Complaint


TECHNICAL SPECS: USB 3.2 Gen 1 Type-A (5 Gbps); Compatible with USB 3.0/2.0; 1x RJ45; 4K Jumbo Frames; VLAN Tagging; Wake on LAN; Energy Efficient Ethernet (EEE); Supports twisted pair crossover & auto detection (Auto-MDIX); Color: White


CONNECTIVITY TOOLS: Provided with this device, the application improves performance and security, featuring MAC Address Changer & Wi-Fi Auto Switch utilities"



Design


Chipset

ASIX - AX88179


Product colour

White


Internal

No


Component for

PC/Laptop


LED indicators

Yes



Weight & dimensions


Height

16 mm


Width

26 mm


Depth

210 mm


Weight

27 g



Packaging content


Manual

Yes



Logistics data


Master (outer) case width

457 mm


Master (outer) case height

167 mm


Products per master (outer) case

20 pc(s)


Harmonized System (HS) code

85176990


Master (outer) case length

351 mm



Sustainability


Sustainability compliance

Yes


Sustainability certificates

CE, RoHS



Network


Networking standards

IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u


Maximum operating distance

100 m


Jumbo frames

4000


VLAN tagging

Yes


Ethernet LAN

Yes


Maximum data transfer rate

5000 Mbit/s


Full duplex

Yes


Ethernet interface type

Gigabit Ethernet


Jumbo frames support

Yes


Cabling technology

10/100/1000BaseT(X)


Ethernet LAN data rates

10,100,1000 Mbit/s



Other features


Housing material

Plastic



Operational conditions


Operating temperature (T-T)

0 - 40 �C


Operating relative humidity (H-H)

0 - 80


Storage temperature (T-T)

-20 - 60 �C



Ports & interfaces


USB version

3.2 Gen 1 (3.1 Gen 1)


Host interface

USB


Ethernet LAN (RJ-45) ports

1


Connectivity technology

Wired


Interface

Ethernet



System requirements


Server operating systems supported

Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019


Linux operating systems supported

Yes


Compatible operating systems

Windows XP(32/64-bit)/ Server 2003(32/64-bit)/ Server 2008 R2/ Vista(32/64-bit)/ 7(32/64-bit)/ 8(32/64-bit) Mac OS 10.6/ 10.7/ 10.8



Packaging data


Package height

45 mm


Package depth

133 mm


Package width

162 mm


Package weight

119 g


Drivers included

Yes
