Startech 3ft 1m Rugged Right Angle USB-C Cable USB 3.2 Gen 2 10 Gbps Full-Featur

Startech 3ft 1m Rugged Right Angle USB-C Cable USB 3.2 Gen 2 10 Gbps Full-Featur

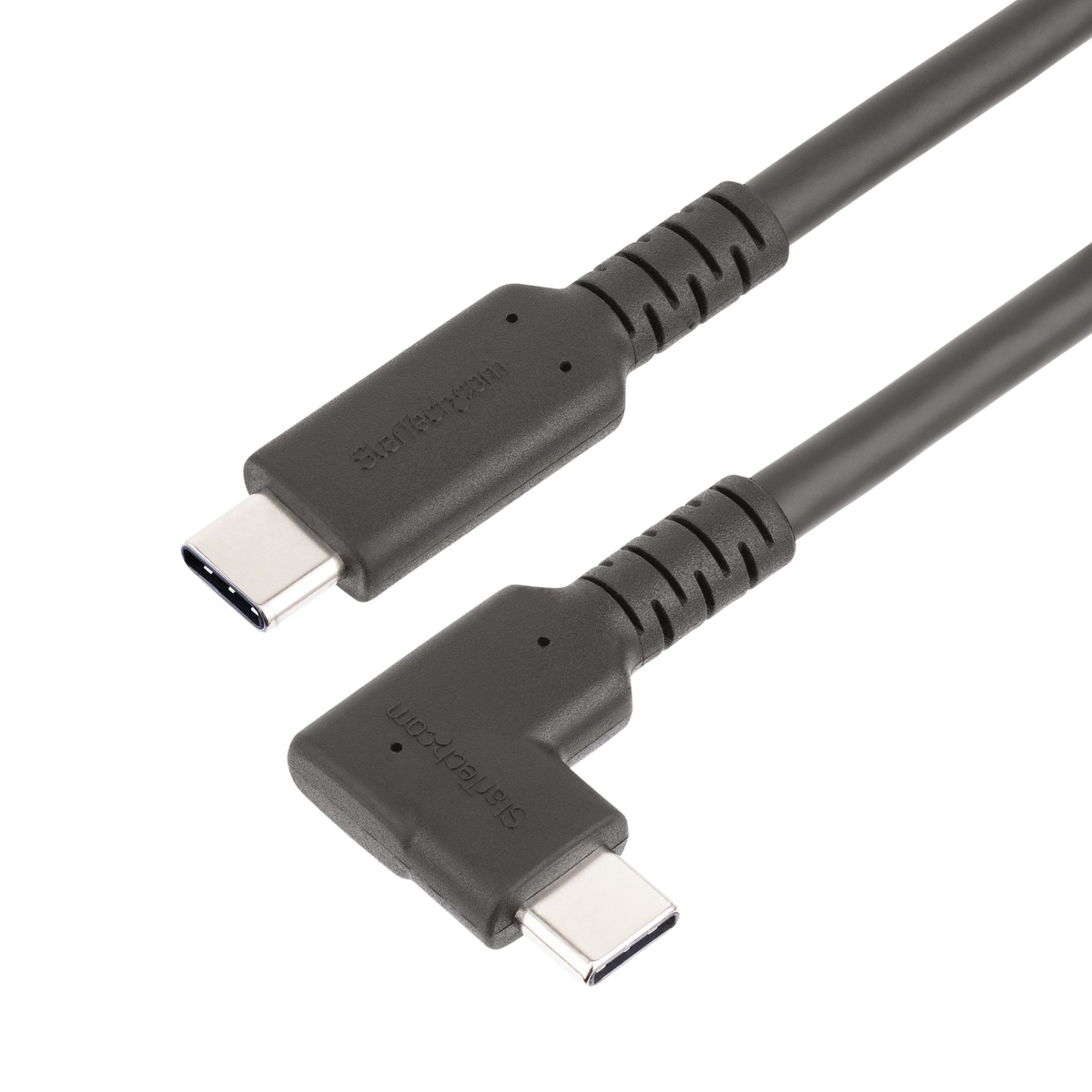

Connect and charge USB Type-C devices with a rugged right-angle USB-C CableConnect USB 10Gbps source and peripheral devices, using this 3.3ft (1m) Rugged Right Angle USB Type-C Cable. Position the right angle USB-C connection along the device to reduce cable clutter and avoid prolonged strain from bending.It is ideal for 10Gbps data transfer to external USB-C-enabled external storage devices, or as a single-cable connection from a USB-C dock to a laptop.Experience 4K Video with DisplayPort 1.2 Alt ModeThe Rugged USB-C cable supports up to 4K 60Hz video over DisplayPort 1.2 Alt Mode, and is compatible with 1080p and lower resolutions.Enhanced DurabilityDesigned to withstand heavy use, the USB-C cable features an Aramid fiber core and durable TPE outer jacket. This heavy-duty construction protects against fraying or breakage and resists tangling.Full-Featured USB-C Power and DataThis USB Type-C cable features Power Delivery (PD) 3.0 with up to 100W PD output. Power and charge a USB-C laptop, such as Apple MacBook, Lenovo ThinkPad, or Microsoft Surface with up to 100W output over USB Power Delivery 3.0. Connect the USB-C cable from a laptop to a USB-C wall charger or docking station.The StarTech.com Advantage

Features


RIGHT ANGLE USB CABLE: Rugged USB Type-C Cable features a right angle USB-C connector; Ideal for connecting in tight spaces; 90 degree connector optimizes cable routing without placing unnecessary strain on the connector and device


DURABLE CONSTRUCTION: The USB-C cable is reinforced with Aramid fiber to enhance flexibility and protection from frequent bending and wear; Robust strain reliefs with 8mm Bend Radius; Nickel-plated connectors rated beyond 10,000 Insertion Cycles


FULL-FEATURE USB-C: Right angle USB-C cable supports up to 10 Gbps transfer rates, 4K 60Hz DP Alt Mode, and 100W Power Delivery; Universal compatibility between USB-C laptops, docking stations, UHD monitors, and external devices


THOUGHTFUL DESIGN: Built-in E-Marker chip for consistent data, video, and Power Delivery output; Flexible TPE outer jacket is nontoxic, halogen-free, and RoHS compliant; Aluminum-mylar shield for enhanced EMI protection


PERFORMANCE: USB 3.2 Gen 2 (10 Gbps); 4K 60Hz DP Alt Mode 1.2; 100W Power Delivery; 3.3ft (1m); Black; 4.8mm O.D.; Dock and charge a USB-C laptop over a single connection; Optimize cable routing to a USB-C device



Weight & dimensions


Bend radius (min)

8 mm


Cable diameter

4.8 mm



Logistics data


Master (outer) case width

380 mm


Master (outer) case height

290 mm


Products per master (outer) case
0 pc(s)


Master (outer) case length

430 mm



Sustainability


Sustainability compliance

Yes


Sustainability certificates

CE, RoHS



Features


USB Power Delivery

Yes


USB version

USB 3.2 Gen 2 (3.1 Gen 2)


Maximum resolution

4096 x 2160 pixels


DisplayPort version

1.2


Maximum refresh rate

60 Hz


Cable length

1 m


Cable jacket material

Thermoplastic elastomer (TPE)


Product colour

Black


Connector 2

USB C


Connector 1

USB C


Maximum data transfer rate
000 Mbit/s


Connector 1 gender

Male


Connector 2 gender

Male


USB Power Delivery up to
0 W


Connector contacts plating

Nickel/Gold


Cable shielding

Aluminum mylar foil


Connector 1 form factor

Angled


Cable type

Round cable


USB Type-C DisplayPort Alternate Mode

Yes


Connector 2 form factor

Straight



Operational conditions


Operating temperature (T-T)

0 - 50 -C


Storage temperature (T-T)

-20 - 60 -C



Power


Output current (max)

5 A



Packaging data


Package height
mm


Quantity per pack

1 pc(s)


Package depth

220 mm


Package width
8 mm


Package weight

95 g
