Startech 3-Port USB Hub with Ethernet - 3x USB-A Ports - Gigabit Ethernet RJ-45

Startech 3-Port USB Hub with Ethernet - 3x USB-A Ports - Gigabit Ethernet RJ-45

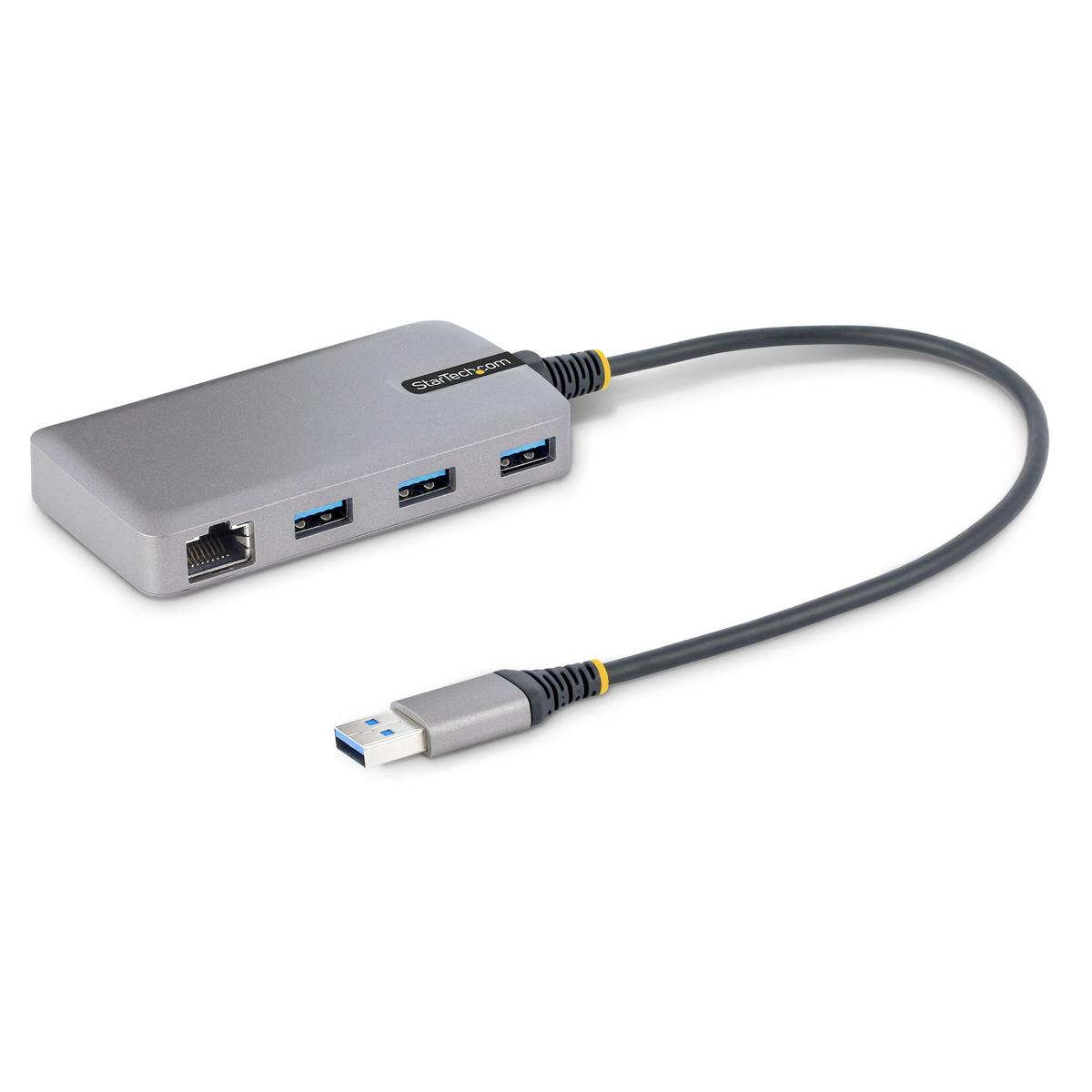

10/100/1000Mbps Ethernet | USB Type-A to 3x USB Type-A | USB 3.2 Gen 1 (5Gbps) | 1ft (30cm) Built-In Host CableThis USB Hub adds three USB-A 3.2 Gen 1 (5Gbps) ports and one Gigabit Ethernet port to a USB-A enabled desktop or laptop computer. The USB Hub connects to a USB-A port on a computer, using the built-in 1ft. (30cm) host cable. The USB hub is backward compatible with USB 2.0 (480Mbps) devices, ensuring support for a wide range of modern and legacy USB peripherals (e.g., thumb drives, external HDDs/SSDs, HD cameras, mice, keyboards, webcams, and audio headsets).The USB hub is compact in size, facilitating portability when travelling.Gigabit EthernetThe USB hub features a Gigabit Ethernet adapter. The Ethernet controller is compatible with the IEEE 802.3u/ab standards and supports Wake-on-LAN (WoL), Jumbo Frames, and V-LAN Tagging. The network adapter enhances laptop network reliability, security, and performance, by utilizing wired 10/100/1000Mbps Ethernet.Bus-Powered with Optional Auxiliary PowerThe USB hub can operate with bus power alone, but features a Micro USB power input that can be connected to a USB power adapter (not included), providing up to 4.5W (5V/0.9A) of power in addition to the 4.5W of bus power from the USB host. This flexibility is ideal for applications where additional power may be required, such as connecting a high-powered USB device, like an external SSD, while using the other ports to connect lower powered devices. For added protection, the USB hub features Overcurrent Protection (OCP). OCP prevents faulty USB peripherals from drawing more power than is safely allocated.Plug and PlayThis device is OS independent, supporting all operating systems, including Windows, macOS, ChromeOS, and Android. The Hub is automatically detected, configured, and installed upon connection to a host computer, such as Apple MacBook, Lenovo X1 Carbon, and Dell XPS. The extra-long built-in 1ft. (30 cm) USB-A host cable enables quick and convenient setup and reduces connector strain on 2-in-1 devices, such as the Surface Pro 7 and laptops on riser stands.Enhance Productivity and Device Management with the StarTech.com Connectivity Tools ApplicationDeveloped to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that is compatible with a wide variety of IT connectivity accessories. The software suite includes:�MAC Address Pass-Through Utility : Improve network security.�USB Event Monitoring Utility : Track and log connected USB devices.�Wi-Fi Auto Switch Utility : Enable users to quickly access faster network speeds via wired LAN.For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/connectivity-toolsThis product is backed for 2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.The StarTech.com Advantage

Features


3 PORT USB HUB: Bus-powered USB 3.2 Gen 1 (5Gbps) expansion hub features a USB-A host connector and 3-port USB-A hub, Overcurrent Protection (OCP) & Wake on USB - 4.5W of bus power dynamically shared between 3 downstream ports


GIGABIT ETHERNET: Features a built-in GbE adapter to provide the reliability and security of wired RJ45 Ethernet to a laptop or desktop - The GbE controller is fully compatible w/IEEE 802.3u/ab standards and supports WoL, Jumbo Frames, and V-LAN Tagging


AUXILIARY POWER INPUT: The USB hub features a Micro USB power input (cable sold separately) to add 4.5W (5V/0.9A) of power to the hub for applications where additional power may be required, such as connecting high power USB devices like SSDs/HDDs


EXTRA-LONG CABLE: Attached 1ft/30cm cable provides longer reach for easy setup and prevents adapter from dangling on the USB-A host connector - Ideal cable length to reduce port strain on 2-in-1 convertible laptops, or host laptops on riser stands


CONNECTIVITY TOOLS: Optimize the performance and security of this USB-A hub, using the included MAC Address Changer, USB Event Monitoring, Wi-Fi Auto Switch utilities (available for download) - Hub compatible with Windows/macOS/Linux/ChromeOS/Android



Weight & dimensions


Height

15 mm


Width

50 mm


Depth

420 mm


Weight

84 g



Logistics data


Master (outer) case width

335 mm


Master (outer) case height

435 mm


Products per master (outer) case

70 pc(s)


Master (outer) case length

465 mm



Sustainability


Sustainability compliance

Yes


Sustainability certificates

CE, RoHS



Network


Wake-on-LAN ready

Yes


Networking standards

IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x


Flow control support

Yes


Jumbo frames

9000


VLAN tagging

Yes


Ethernet LAN

Yes


Full duplex

Yes


Ethernet LAN (RJ-45) ports

1


Auto MDI/MDI-X

Yes


Jumbo frames support

Yes


Ethernet LAN data rates

10,100,1000 Mbit/s



Other features


Chipset

VIA - VL817, Asix - AX88179A



Software


Other operating systems supported

Android


Mac operating systems supported

Mac OS X 10.11 El Capitan, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura


Linux operating systems supported

Yes



Operational conditions


Operating temperature (T-T)

0 - 70 �C


Operating relative humidity (H-H)

0 - 85


Storage temperature (T-T)

-40 - 85 �C



Ports & interfaces


USB 3?2 Gen 1 (3?1 Gen 1) Type-A ports quantity

3


Microphone in

No


Host interface

USB 3.2 Gen 1 (3.1 Gen 1) Type-A


Micro-USB 2?0 ports quantity

1


Connectivity technology

Wired



Performance


Product colour

Grey


Hub interfaces

Micro-USB, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A


Card reader integrated

No


Housing material

Plastic


LED indicators

Activity, Link


UASP support

Yes



Power


USB cable length

0.3 m


Power source type

USB



Packaging data


Package height

30 mm


Package depth

172 mm


Package width

142 mm


Package weight

140 g
