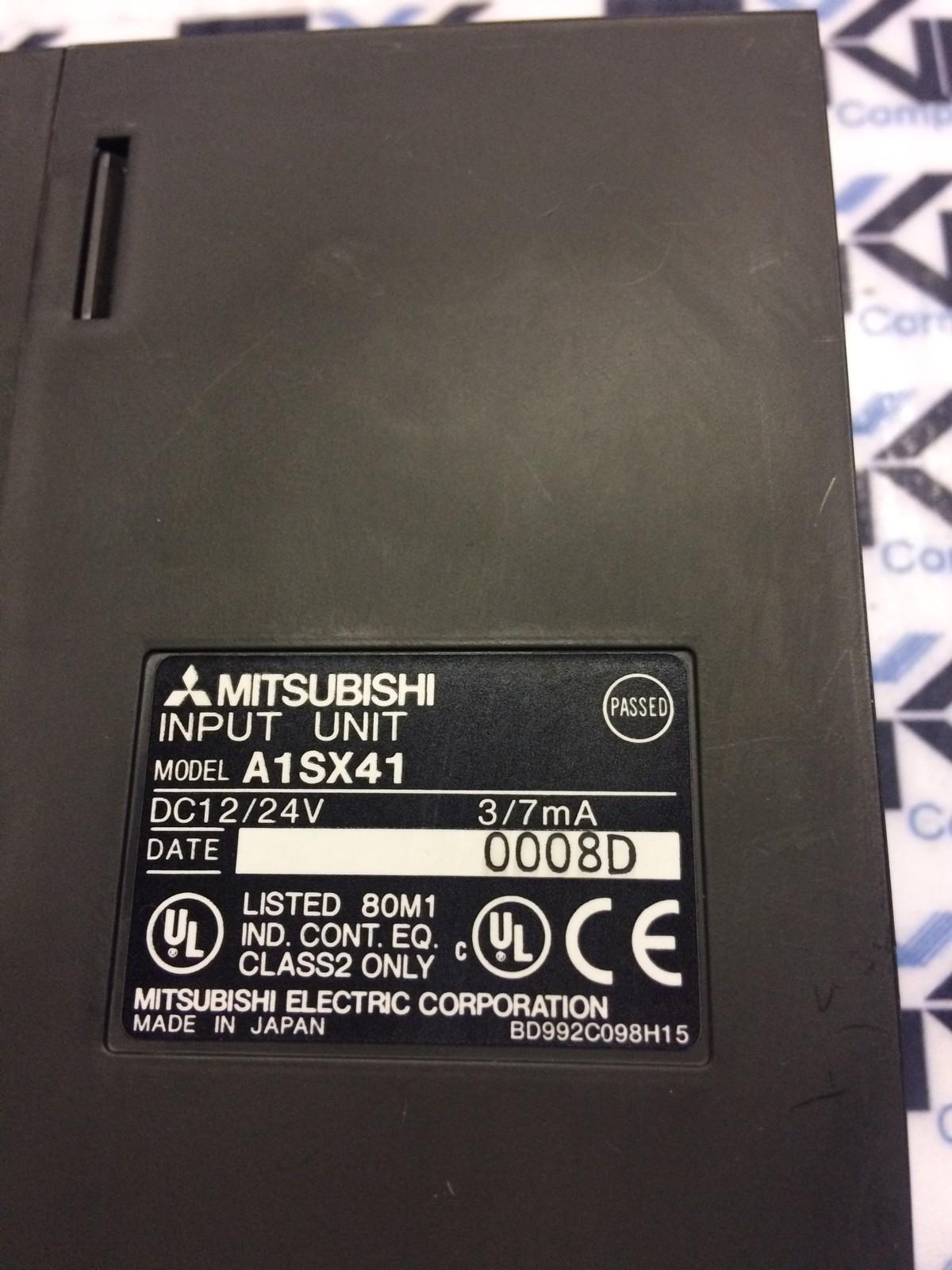

Mitsubishi Electric A1SX41 Input Unit Module 12-24VDC

Condition: Used
Dimensions: 10.00 x 8.00 x 4.00 inches (L x W x H)
Weight: 0.40 Lbs.

The Mitsubishi A1SX41 is a digital input module for the MELSEC AnS series PLC systems. It is used to interface DC input signals into the PLC for control and monitoring purposes. Model: A1SX41 Series: MELSEC AnS Series Type: Input Unit Module Input Voltage: 12–24 VDC Number of Input Points: 32 points Input Type: Sink/source type (common selectable) Input Current: Approx. 7 mA per point Response Time: 10 ms or less Connector Type: Removable terminal block Mounting: Base rack mounted (AnS PLC rack) Isolation: Photocoupler isolation for each input Certifications: UL, CE, CSA Applications: Factory automation, sensor interfacing, control panel I/O expansion, and industrial monitoring systems Please review pictures carefully and let us know if you have any questions!
