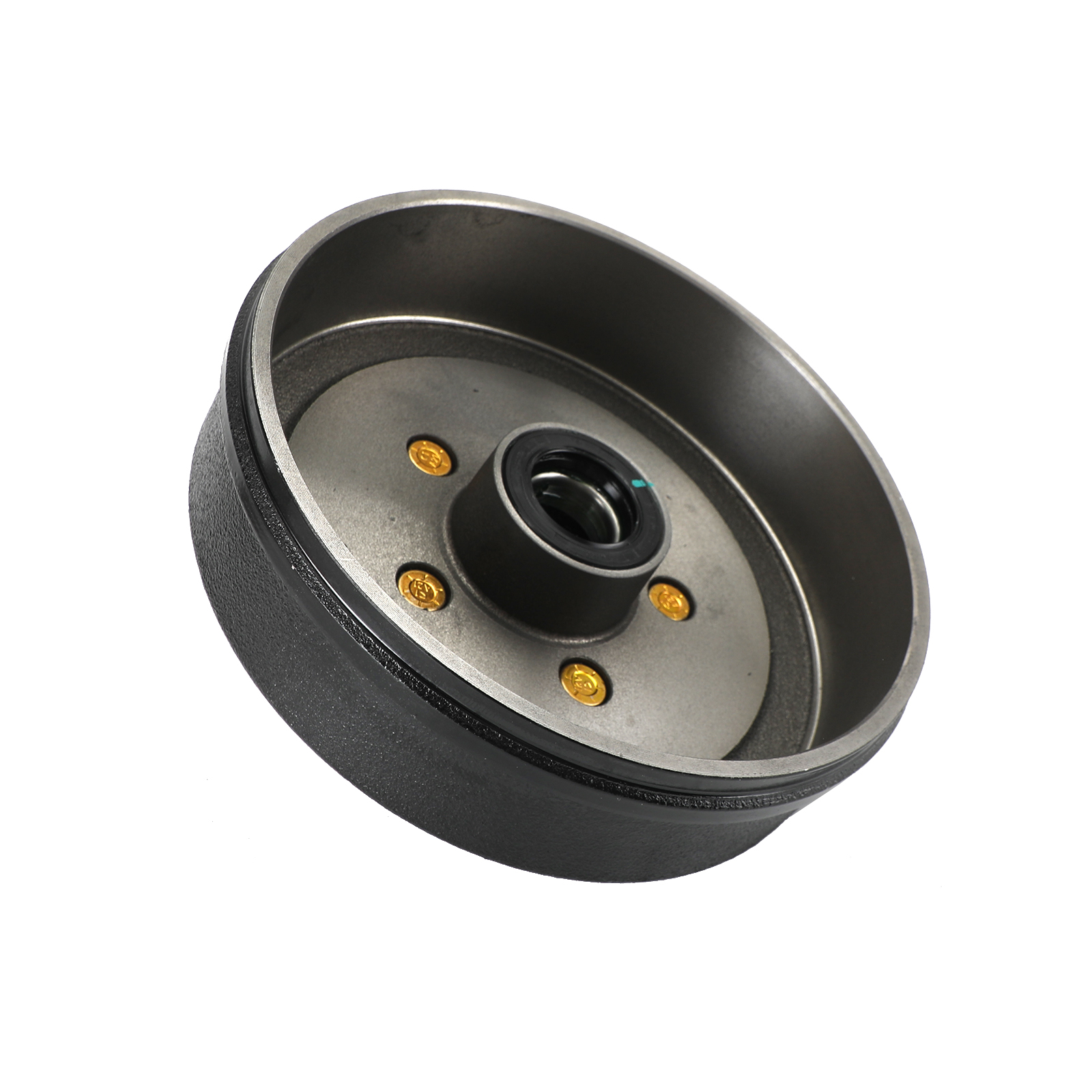

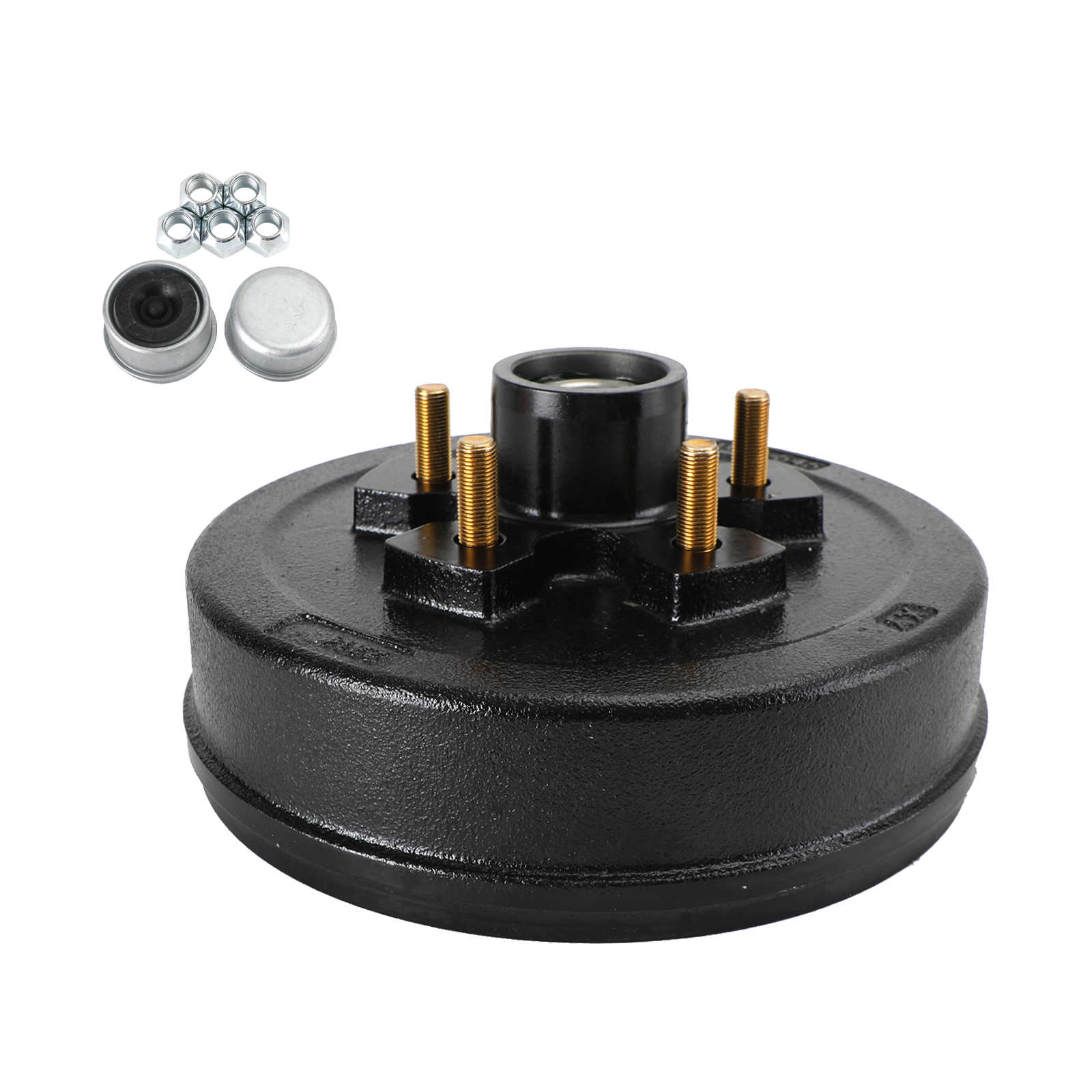

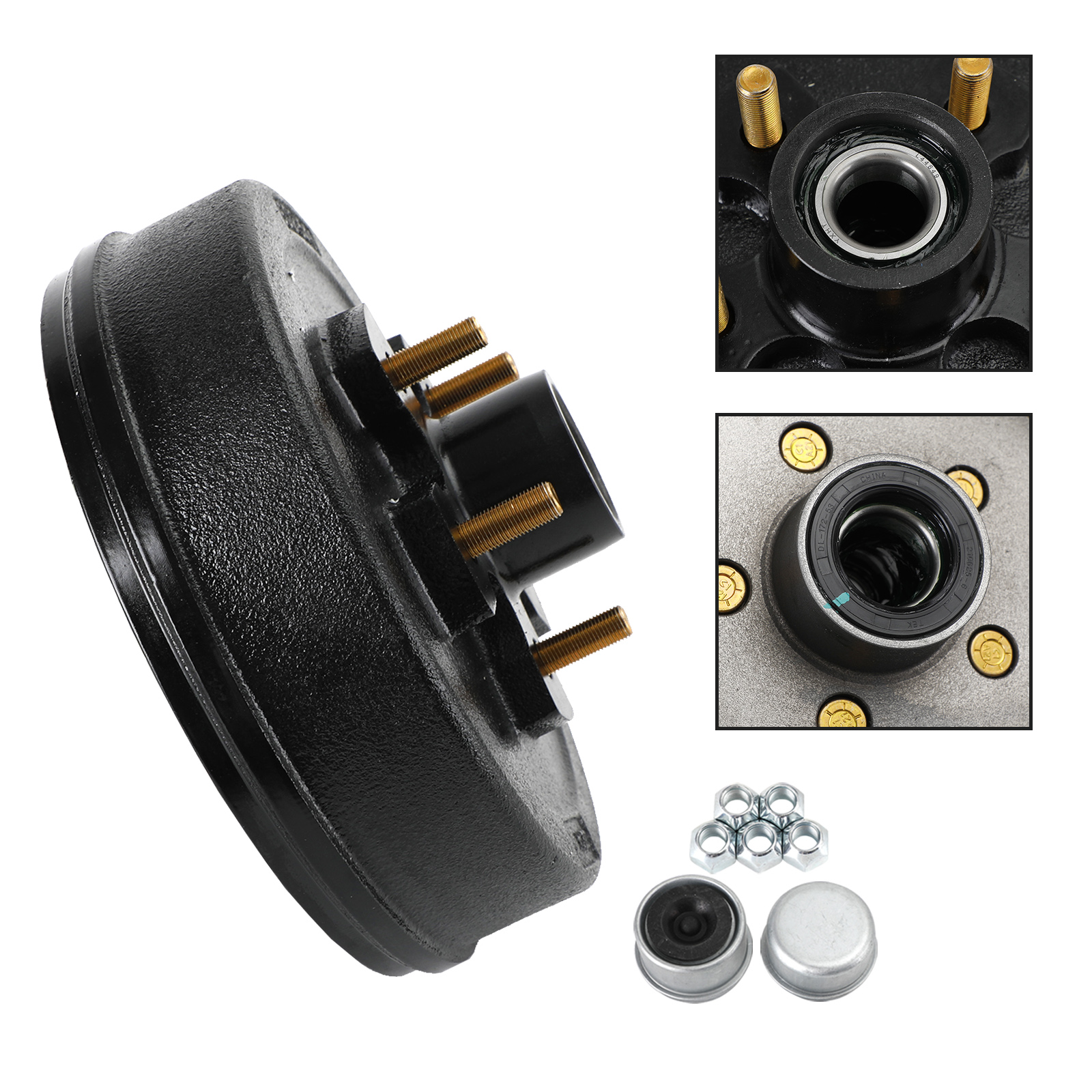

Grease Trailer Hub and Drum Assembly for 3.5K Axles -10"-5 on 4-1/2-Pre-Greased

Hub-and-drum assembly for your trailer. For electric or hydraulic brakes. Fits 3.5K Dexter E-Z Lube and etrailer Easy Grease axles. Inner bearing (L68149) and race, outer bearing (L44649) and race, grease seal, grease cap, and lug nuts included.

Features:

Trailer hub-and-drum assembly provides surface area for brake shoes to grip when brake is activated
Compatible with electric and hydraulic drum brakes
Dexter E-Z Lube and etrailer Easy Grease-compatible grease cap makes lubricating bearings fast and easy
Remove rubber plug to access zerk fitting on spindle - no need to disassemble hub
Sturdy iron construction

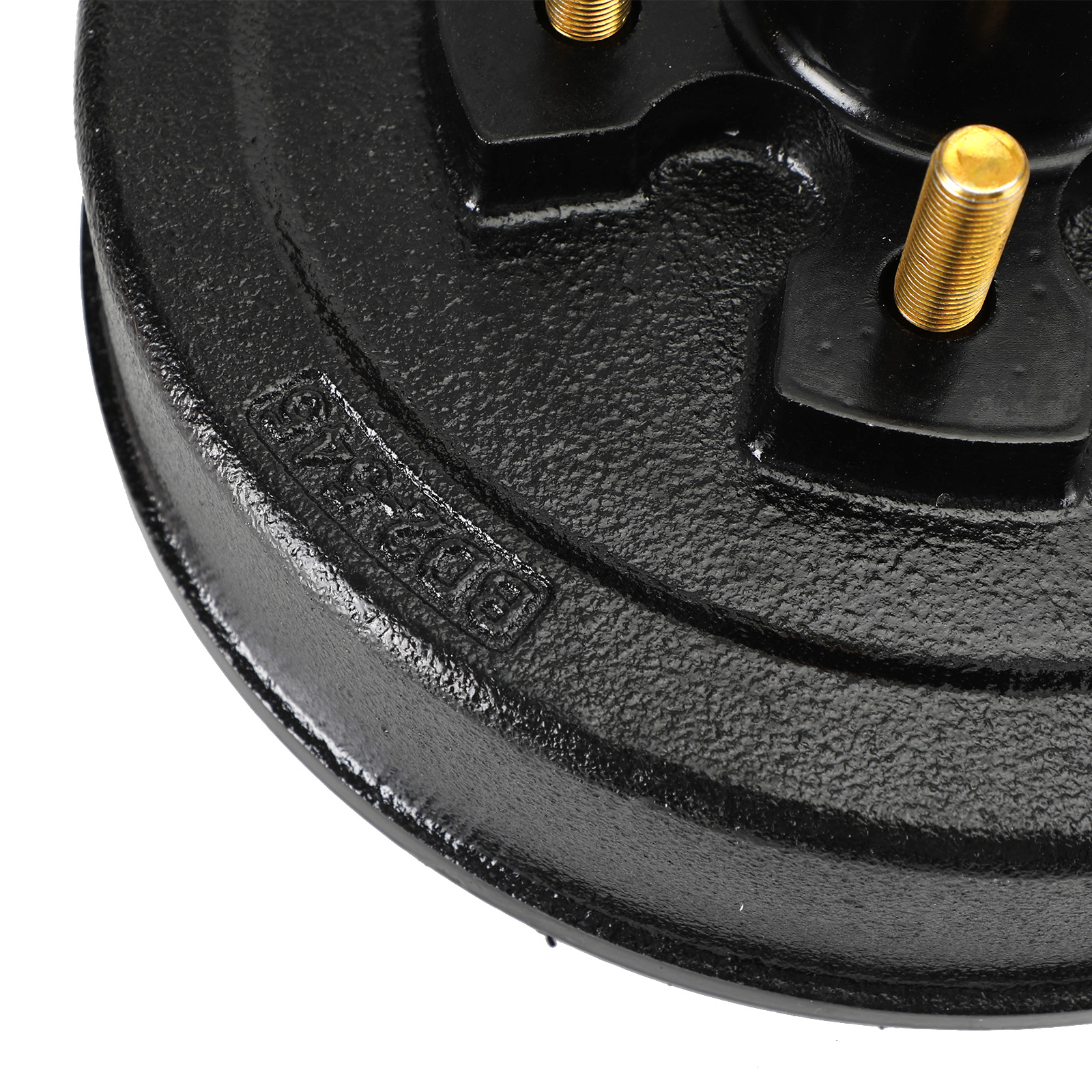

Zinc-enriched paint on drum adds durability
Zinc-finished bolts resist corrosion
Pre-greased hub-and-drum assembly is easy to install - no need to pack bearings
Lithium complex, multipurpose grease keeps bearings lubricated

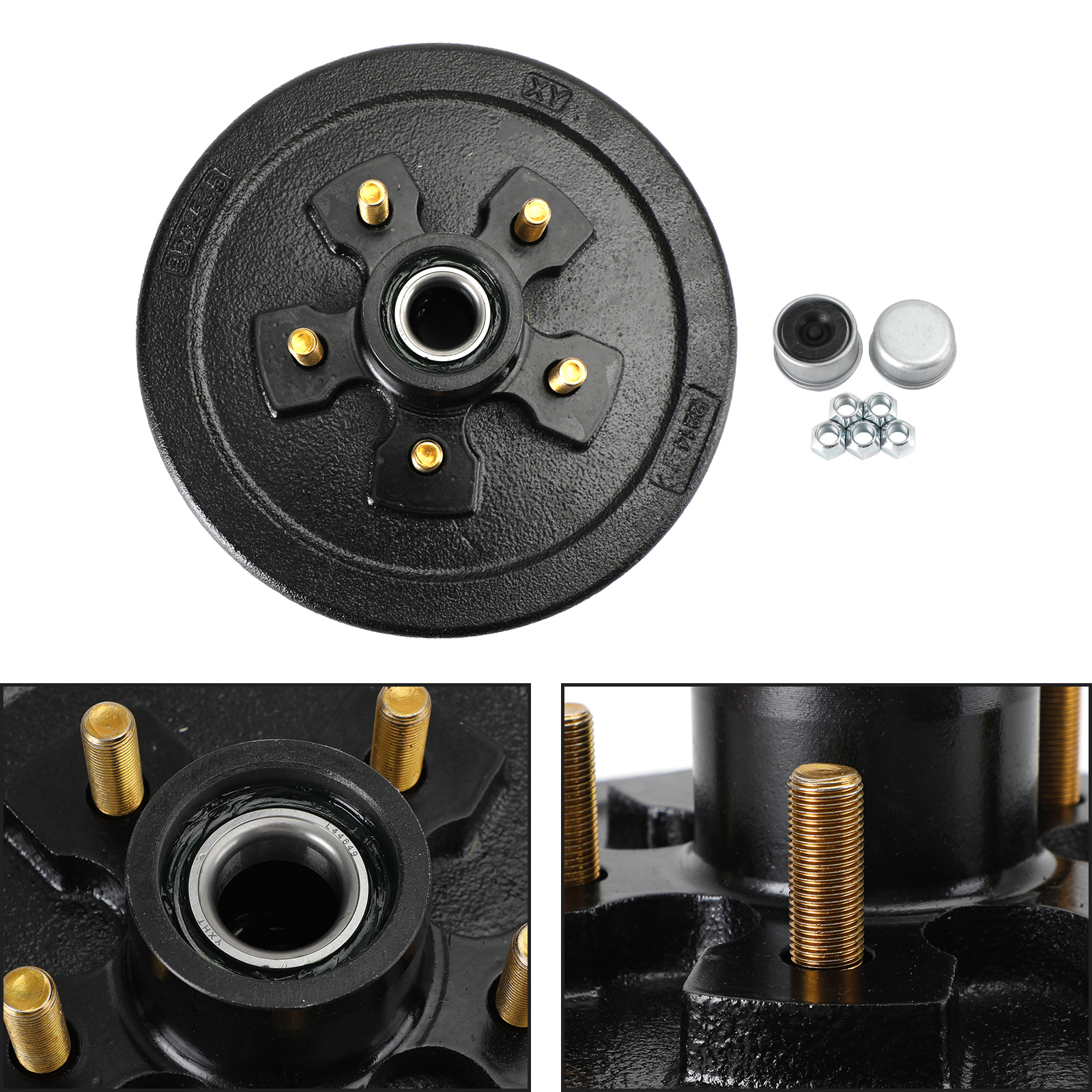

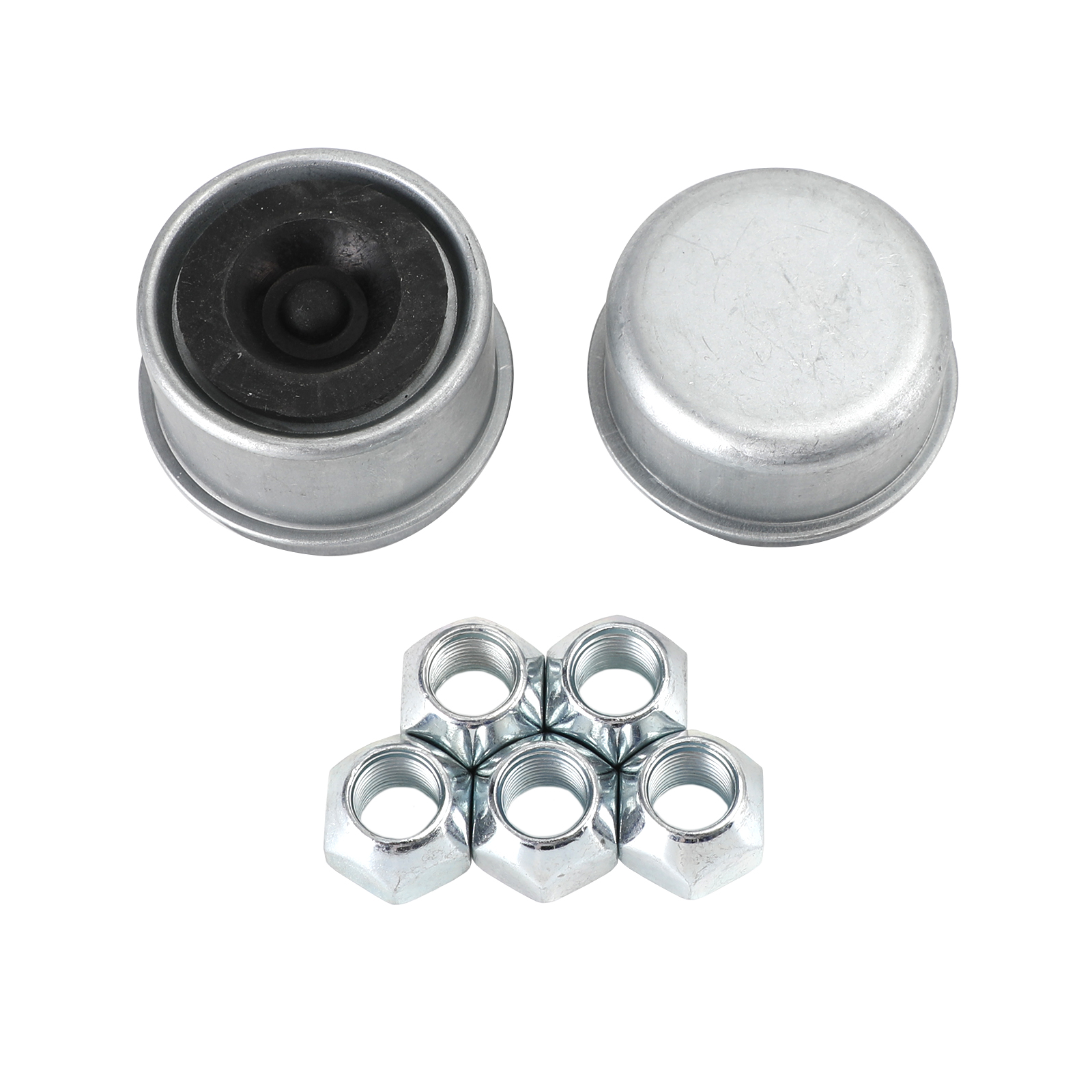

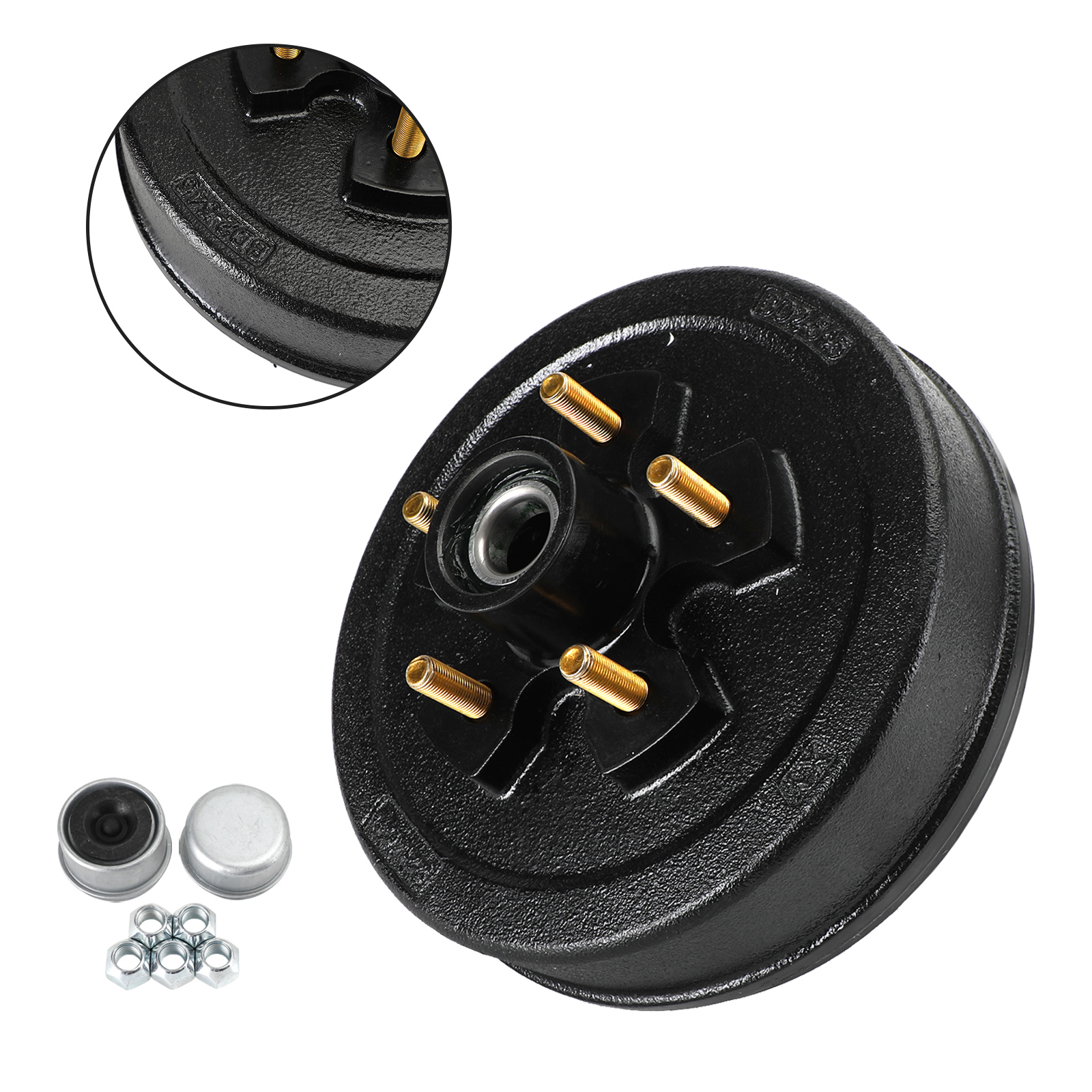

Bearings, races, grease seal, grease cap, and lug nuts are included
QAI and CSA certified

Specs:

Application: 3,500-lb Dexter E-Z Lube and etrailer Easy Grease trailer axles with #84 spindles
Compatible with standard axles from most manufacturers, including Dexter, Lippert (LCI), and AL-KO

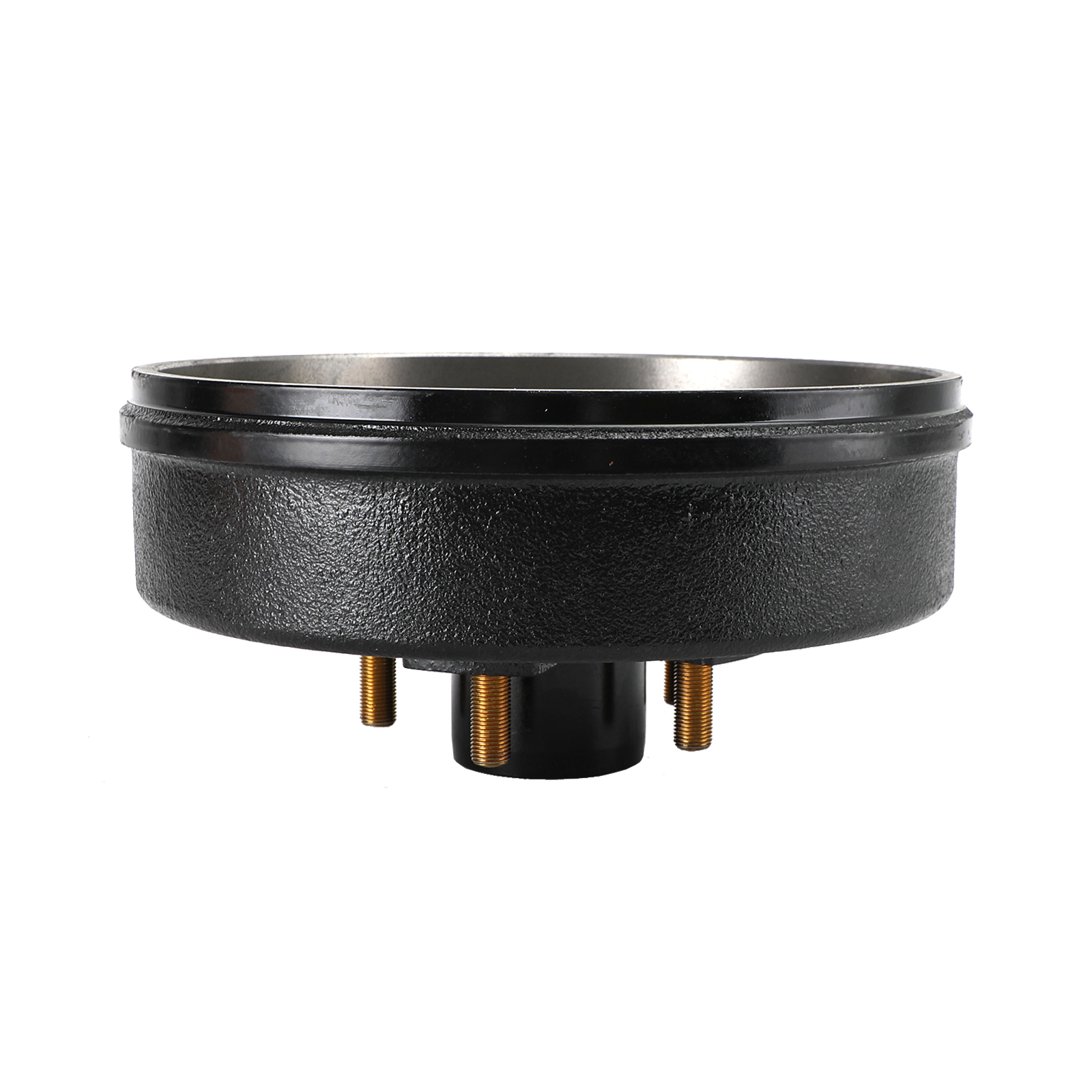

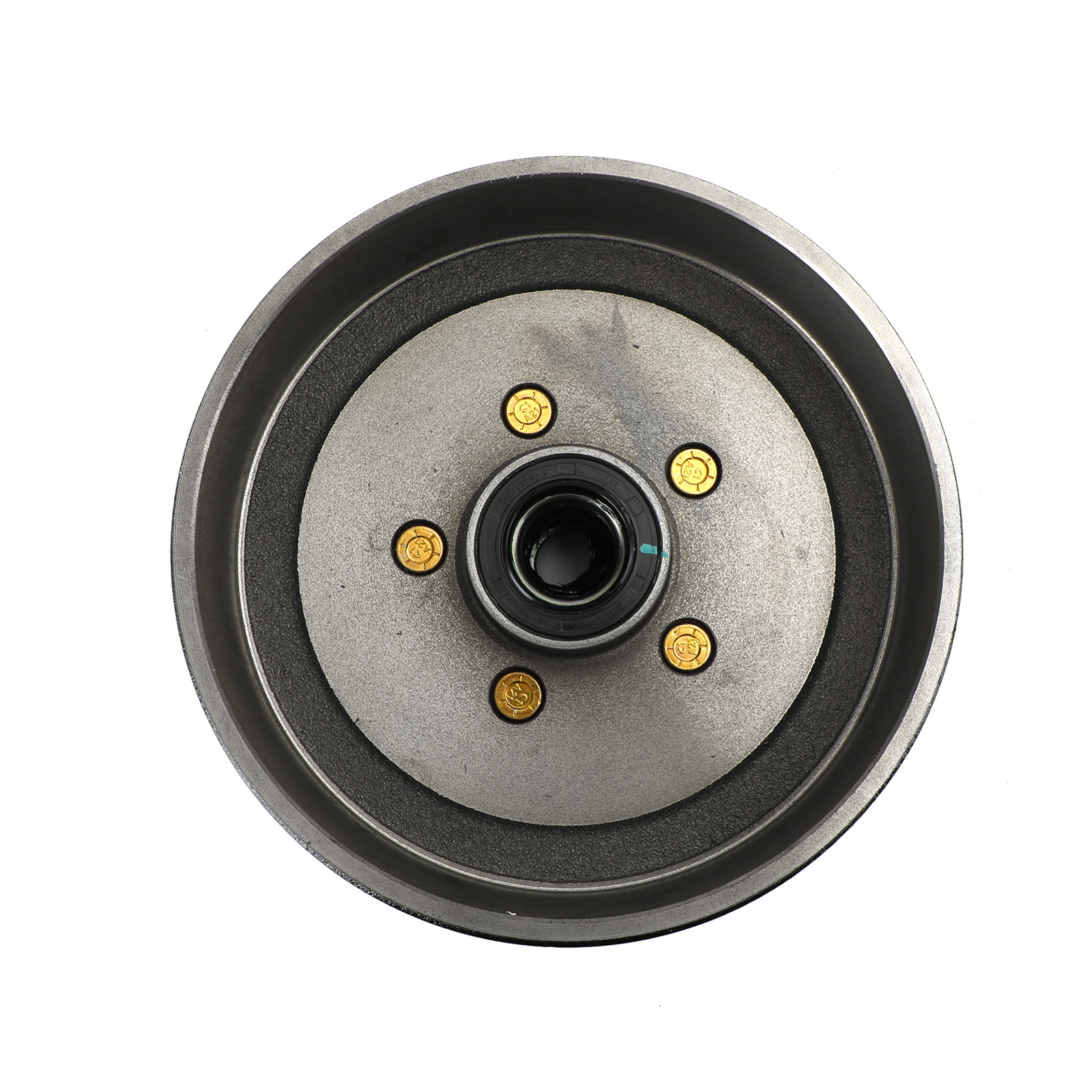

Actual drum dimensions: 10" diameter x 2-1/2" wide
Works with 10" brake assembly
Bolt pattern: 5 on 4-1/2"

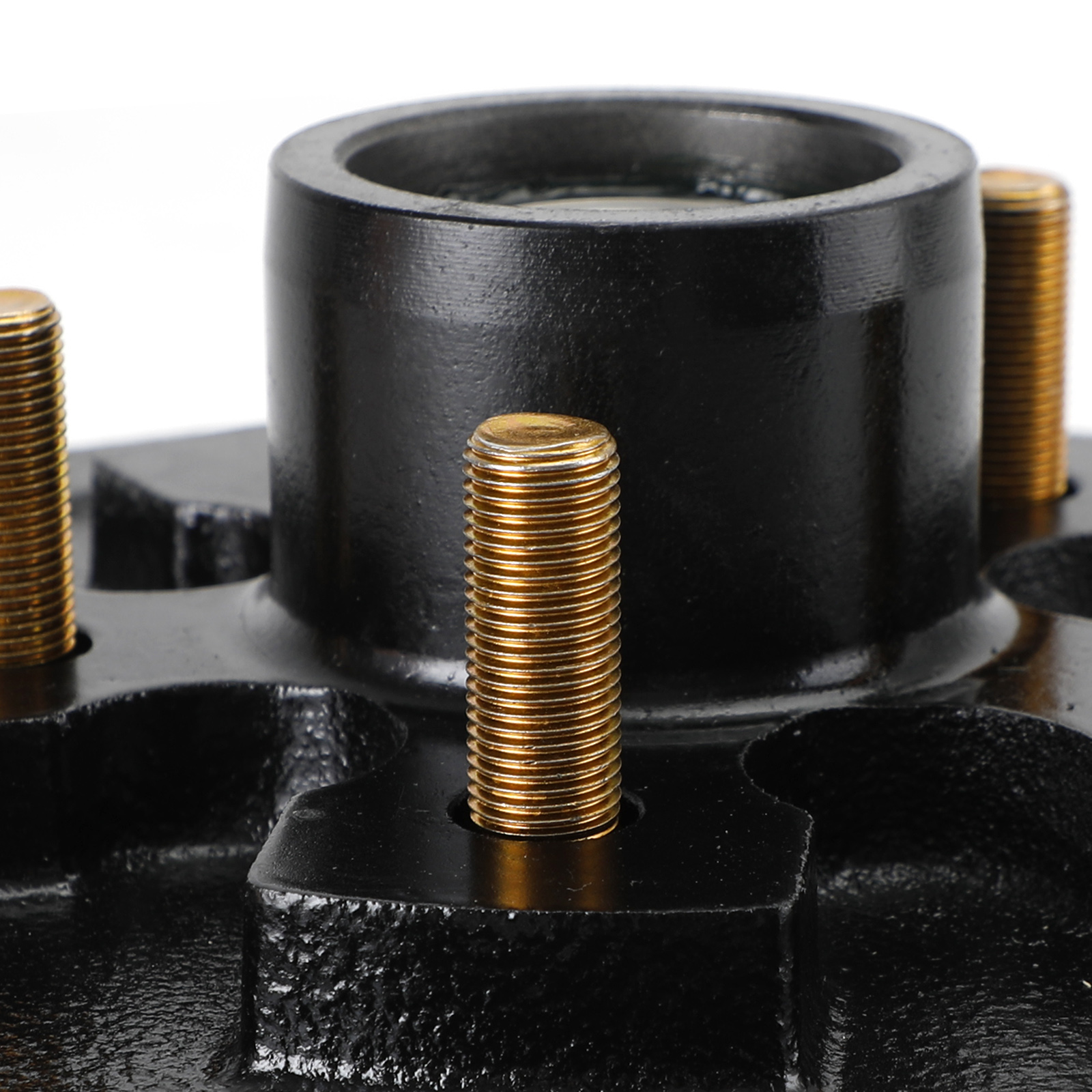

Wheel studs: 1/2" diameter x 1-1/4" long
Grease cap flange diameter: 1.99"
Weight capacity: 1,750 lbs

Bearing, Race, and Seal Information
Bearings (included)
Inner bearing: L68149 (1.378" inner diameter)

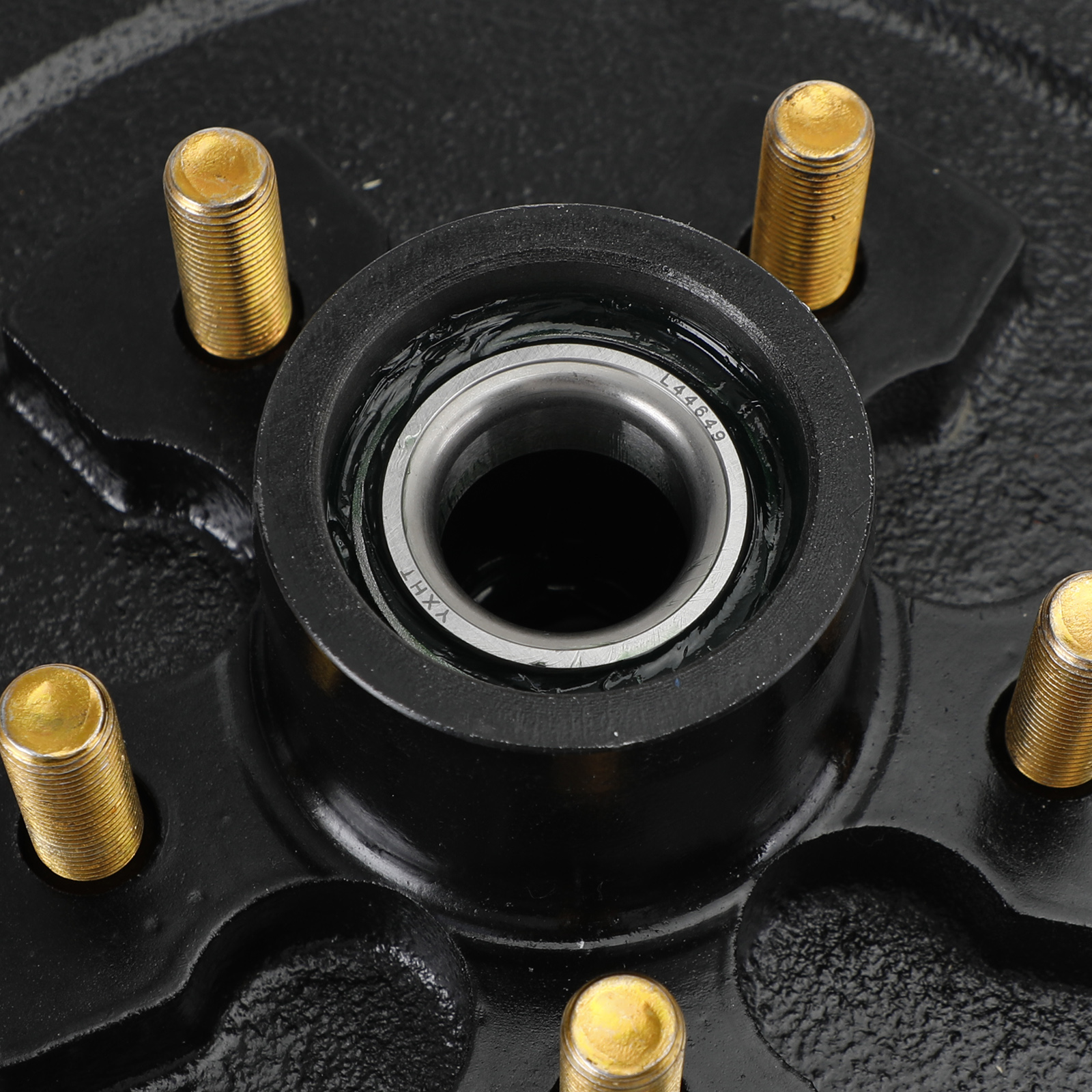

Outer bearing: L44649 (1.063" inner diameter)
Races (included)
Inner race: L68111
Outer race: L44610

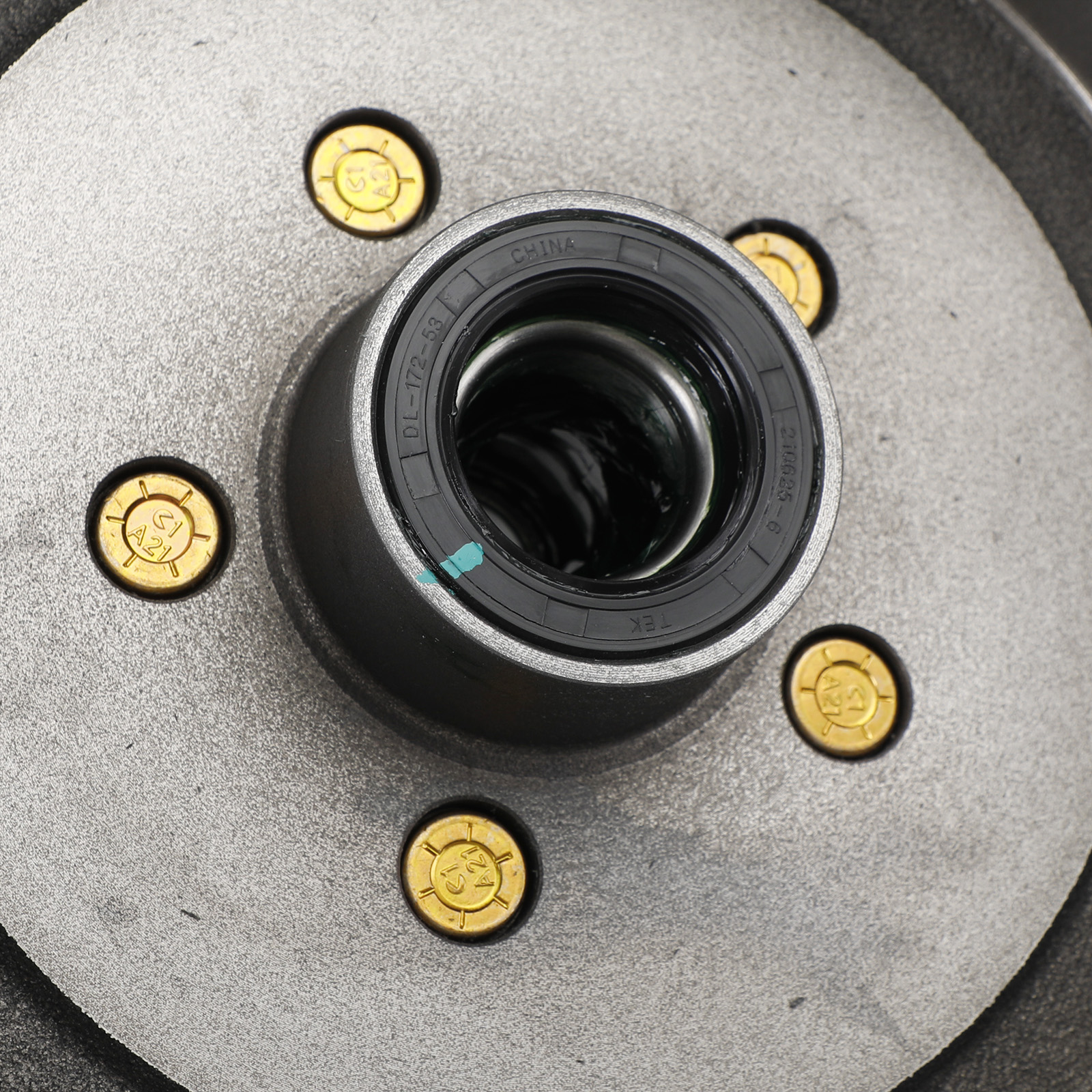

Grease seal (included): 58846
Inner diameter: 1.719"
Outer diameter: 2.565"

Thoroughly Tested for Safety
This hub-and-drum assembly meets the requirements for certification by the Canadian Standards Association (CSA). The CSA creates standards, which when complied with ensure a safe and quality product. This assembly underwent extensive testing to measure stopping distances when braking. This assembly has also been tested by QAI for braking performance in a complete automotive setup and under real-world conditions to provide the most realistic scenario for the everyday driver.

E-Z Lube and Easy Grease-Compatible Assembly for Simple Lubrication
The grease cap on this hub-and-drum assembly is specially designed to work with your Dexter E-Z Lube or etrailer Easy Grease axle to make lubricating bearings quick and easy. Just remove the plug on the grease cap, attach a grease gun to the zerk fitting on the end of the spindle, and inject the grease. It will flow easily to both inner and outer bearings. Not only does this make lubricating the bearings easy, but it also helps to prevent corrosion of the hub. This is because you can lubricate the bearings without the mess of taking apart the entire assembly.
