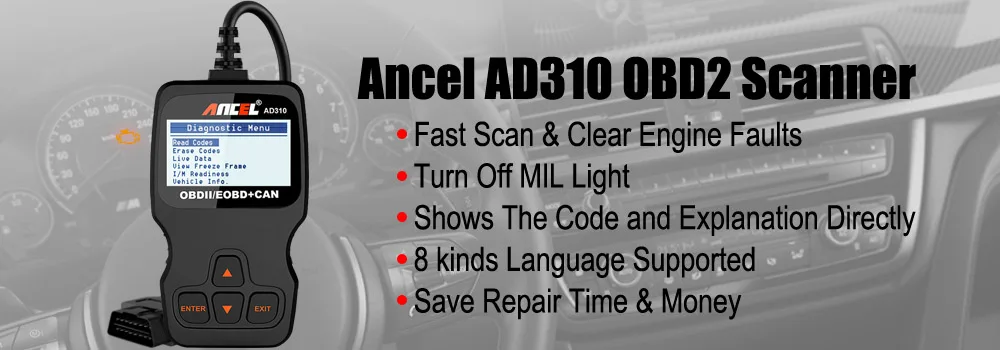

Ancel AD310 OBD2 Scanner OBD Car Code Reader Diagnostic Scan Tool Check Engine

Ancel AD310 OBD2 Automotive Scanner OBD EOBD Car Diagnostic Tool Engine Analyzer Reading Code Clear Code PK ELM327 v1.5

Ancel AD310 OBD2 Car Diagnostic Tool Erase Error Code Reader For Engine

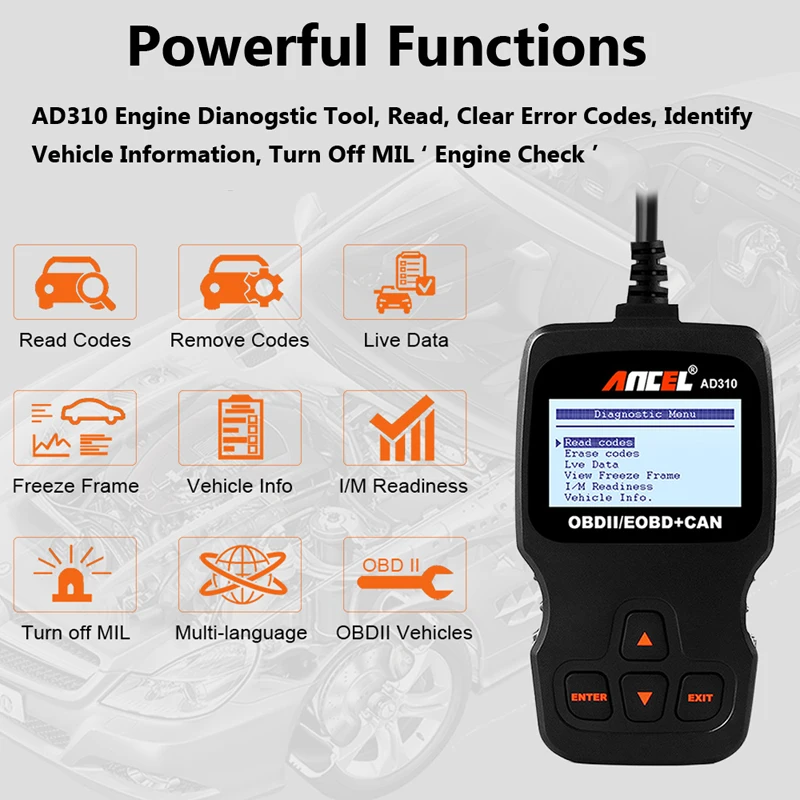

Powerful Function Engine Check Including

1.Read, Clear engine error codes. Turn off Engine 'Check' MIL. 2.Live Data / Freeze Frame --- When emission-related faults occurs, certain vehicle conditions are recorded, so it can better locate the abnormal position and find the cause of the abnormality when it is repaired. 3.I/M Readiness --- It indicates whether or not the various emissions-related systems on the vehicle are operating properly and are ready for Inspection and Maintenance testing. 4.VIN Code Reading --- It can reading the VIN code from the car ECU (some cars ECU not support this functions) 5.Hard(memory) Codes Reading 6.Pending Codes Reading 7.Shows Codes Definitions

Notice:

Ancel AD310 is only work for engine, If you need ABS Airbag Function, i recommed Launch X431 CR619. and If you are not sure whether your car is supported,pls leave us message firstly.

Support 8 Kinds of Different languages

English, French, German, Spanish, Dutch, Finnish, Portuguese, Russian

Ancel AD310 OBD2 Engine Code Reader

1.Must have--- Classic design, fast scan and clear trouble codes, even a beginner can use this unit to read the error code, find out what the problem is and perhaps fix it. Save money and time. 2.Basic functions--- Easily determines the cause of the check engine light. I/M monitor readiness test, turn off the MIL (check engine light) as well as view freeze frame data. Read hard (memory) / pending (intermittent) and historic codes and show definitions. 3.Easy to operate--- The AD310 scanner is well built with a large LCD display (128 x 64 pixel) that has white backlight and contrast adjustment, indicates test results directly. No need any Batteries or Charger, gets the power directly from the OBDII Data Link Connector in your vehicle.

AD310 Automotive Scanner Support OBDII Protocols

ISO 9141-2 (5 baud init, 10.4 Kbaud) ISO14230-4 KWP (5 baud init, 10.4 Kbaud) ISO14230-4 KWP (fast init, 10.4 Kbaud) ISO15765-4 CAN (11bit ID, 500 Kbaud) ISO15765-4 CAN (29bit ID, 500 Kbaud) ISO15765-4 CAN (11bit ID, 250 Kbaud) ISO15765-4 CAN (29bit ID, 250 Kbaud) SAE J1850 PWM(41.6Kbaud) SAE J1850 VPW(10.4Kbaud)

OBD2 Scanner Supported Car List (Very Important)

AD310 Support 12V Diesel , Gasoline Car, Do NOT Support Hybrid, Electrical Car

American (USA) car

Compatible with Standard OBD2 Cars after 2001: for Chrysler, for Ford, for GM, for Jeep

European car

Compatible with Standard OBD2 Cars after 2004: (if you car is Opel in 2004, 2005, 2006, please ask us first) for Alfa Romeo, for SAAB, for Acura, for Opel, for Audi, for Seat, for Bentley, for Skoda, for Daewoo, for Benz, for Daihatsu, for Land Rover, for BMW, for Vauxhall, for Volvo, for Fiat, for VW, for Ford, for Jaguar for Skoda Superb after 2006

France Car

for Citroen, for Peugeot after 2006, Not Support for Renault

Asian (Japanese/Korean) car

Compatible with Standard OBD2 Cars after 2005: (if your car is in 2004 2005 2006 release , please ask us first) for KIA,for Isuzu,for Honda , for Mitsubishi, for Hyundai,for Dacia, for Lexus, for Mazda, for Subaru, for Toyota,for Nissan after 2008,for Suzuki after 2012 Not support for Ssangyong If your car is EOBD/JOBD portocol , we suggest you check Ancel JP700. For Golf, for Gol, for Passat A4 A6 Q7 ,Please check Autophix V007. For VAG ,for VW,for Audi,for Skoda ,for Seat,Please check Ancel VD500.

Chinese car:

Compatible with Standard OBD2 Cars after 2008: for BYD, for Chery, for Geely, for Great Wall, for Karry

Note:

Even though it compatible with most cars, but different regions support the vehicle OBD2 protocol at different times, or some car is special design, so it may not compatible with some cars which do not support OBD2 protocol. Especially Japanese and Korean car brand. Please Leave us message in below format, we will reply you within 8 hours. for example : xx, 2005, 2.0cc, Diesel

Warning:

Not Support Russian Cars, VAZ,UAZ,LADA Not works with Trucks, Pickups, Vans

ANCEL AD310 OBD2 Scanner Usage

1, Plug into the car OBD2 16pin port 2, Start the engine (ignition), the tachometer will point around 0.7 3, Chose the diagnostic menu as you want. If you have any question, Please kindly contact us , we will reply you within 8 hours.

Specifications

Screen: 128*64 pixel with Contrast Adjustment Operating Temperature: 0 to 60C (32 to 140F) Storage Temperature: -20 to 70C (-4 to 158F) External Power: 8.0 to 18V Power Provide via Vehicle Battery Dimension:4.7" x2.7"x0.80" (125mmx70mmx22mm) Weight: 0.32kg(0.74lb)

Product Size

1* Ancel AD310 1* User Manual
