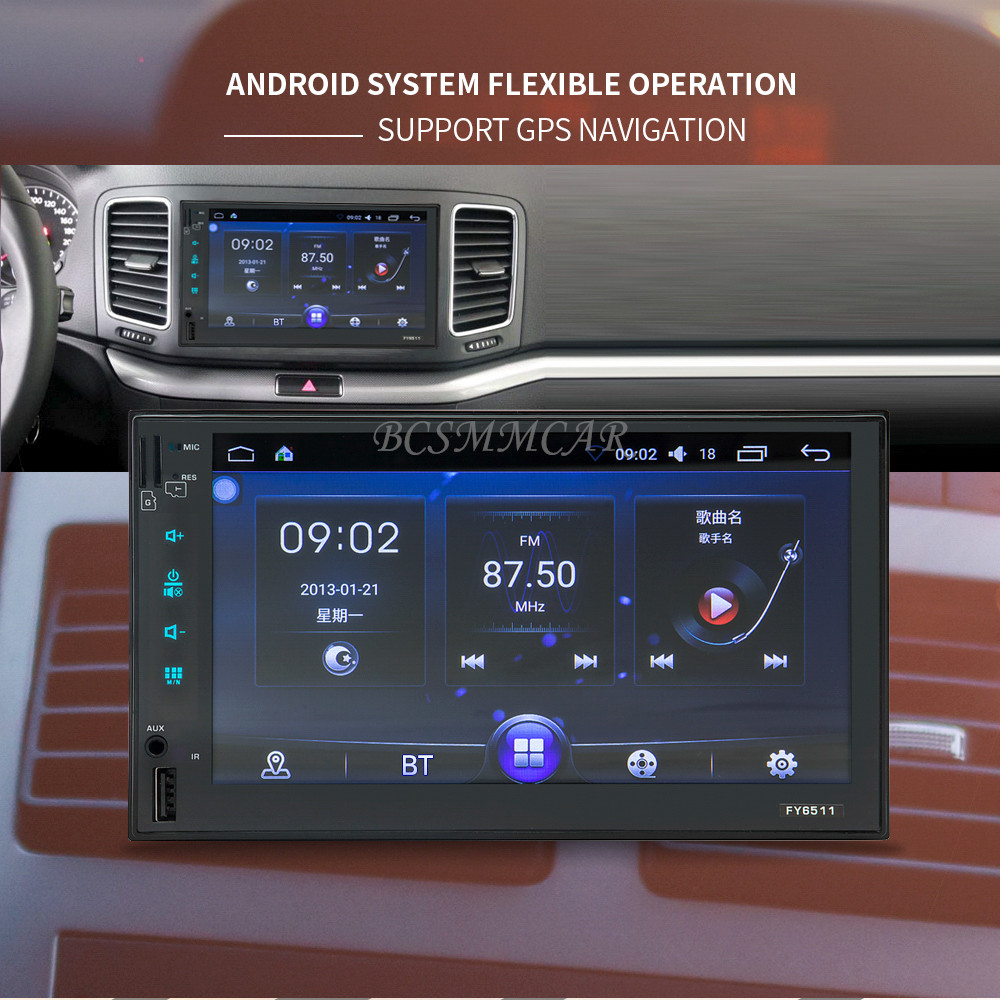

The functions of Android system:
Operating System Android

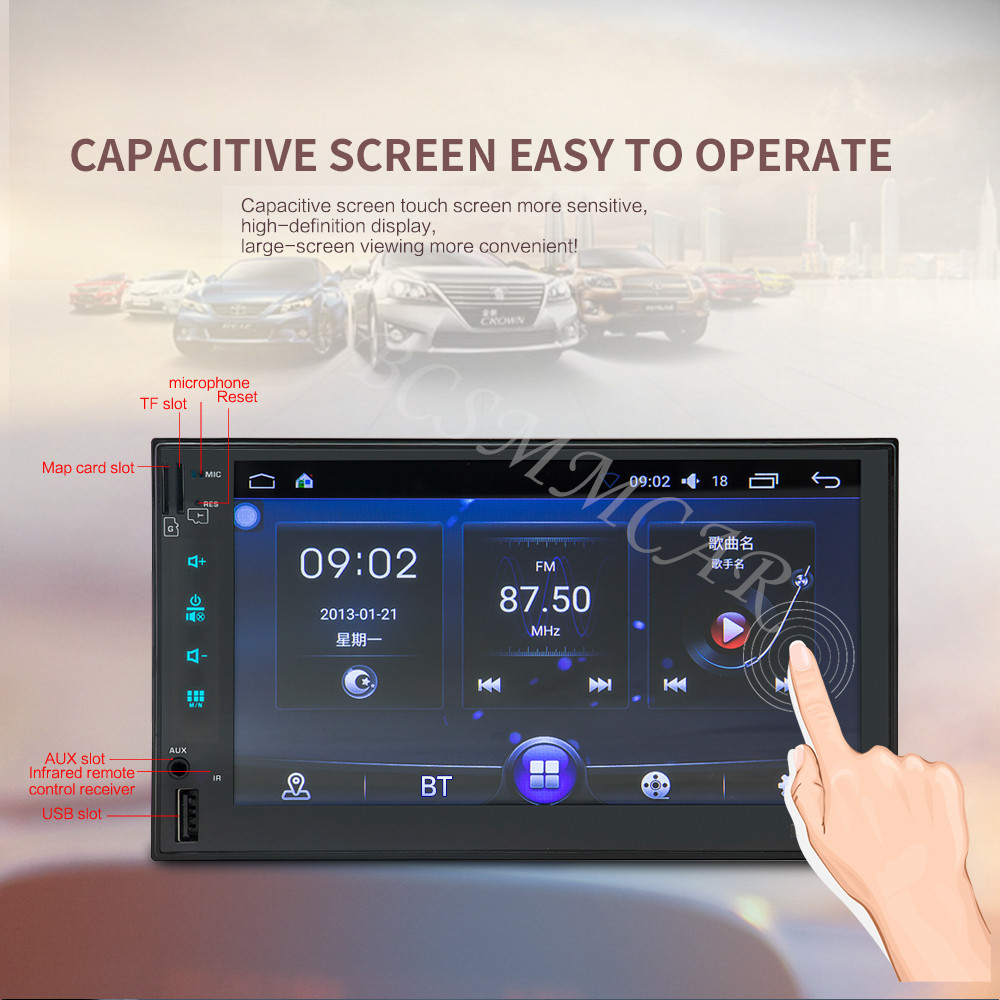

Support capacitive touch screen, multi touch;
Built in Bluetooth function, phone book and A2DP music;
Built in WiFi,
Support multiple CVBS inputs;
Built in GPS function;
Built in radio, FM AM
Support rearview camera input;

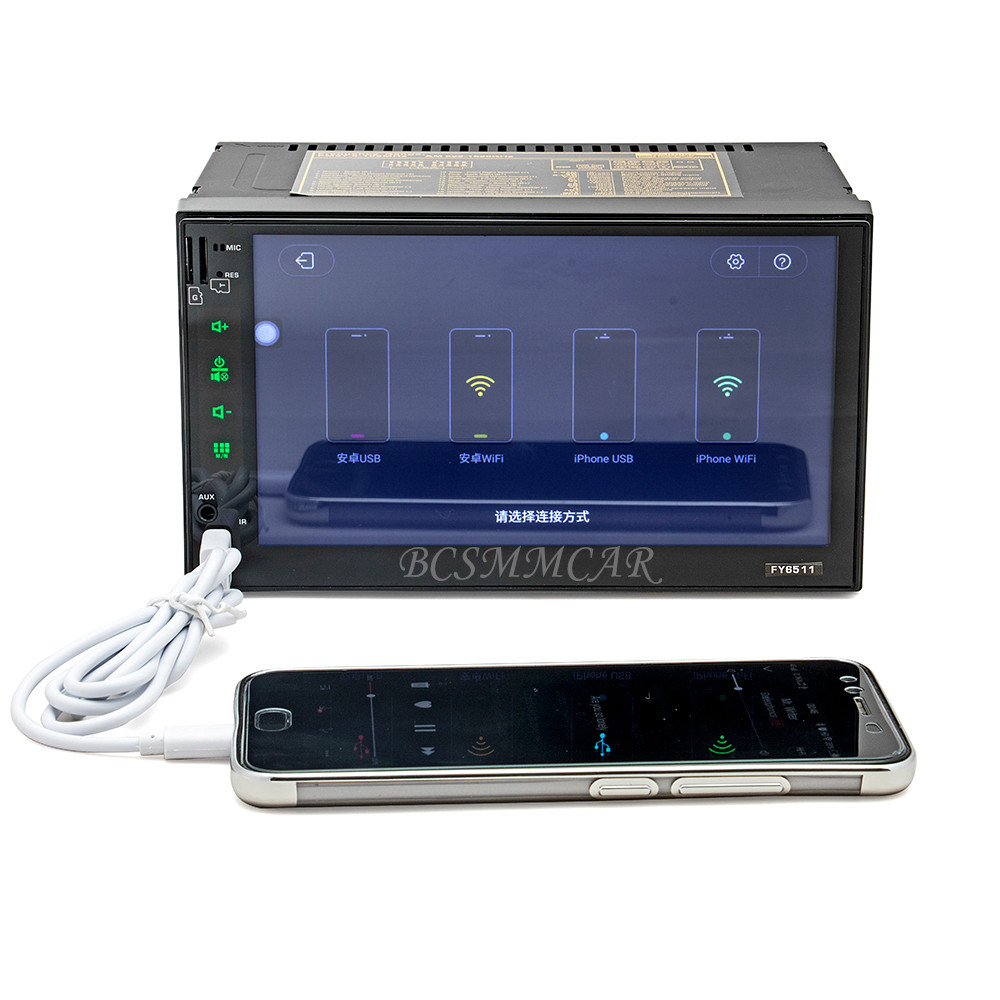

Support mirror linking function
Multi format video decoding, 1080P full format playback;
Support built-in and external GPS maps;
Support downloading, installing and uninstalling Internet applications
operating system
Android
CPU manufacturer and model Intel&RK, SOHA-3GR
Chip process 28nm
Main frequency quad core Intel Atom 1.2G
GPU model MaIi450MP4, 600MHz
Total RAM capacity DDR3 1GB
storage
Internal capacity EMMC 16GB
Supports SD card display and range, supports 2 SD cards, 4-64GB
Supports USB expansion and range, supports 4-channel USB, 4-64GB

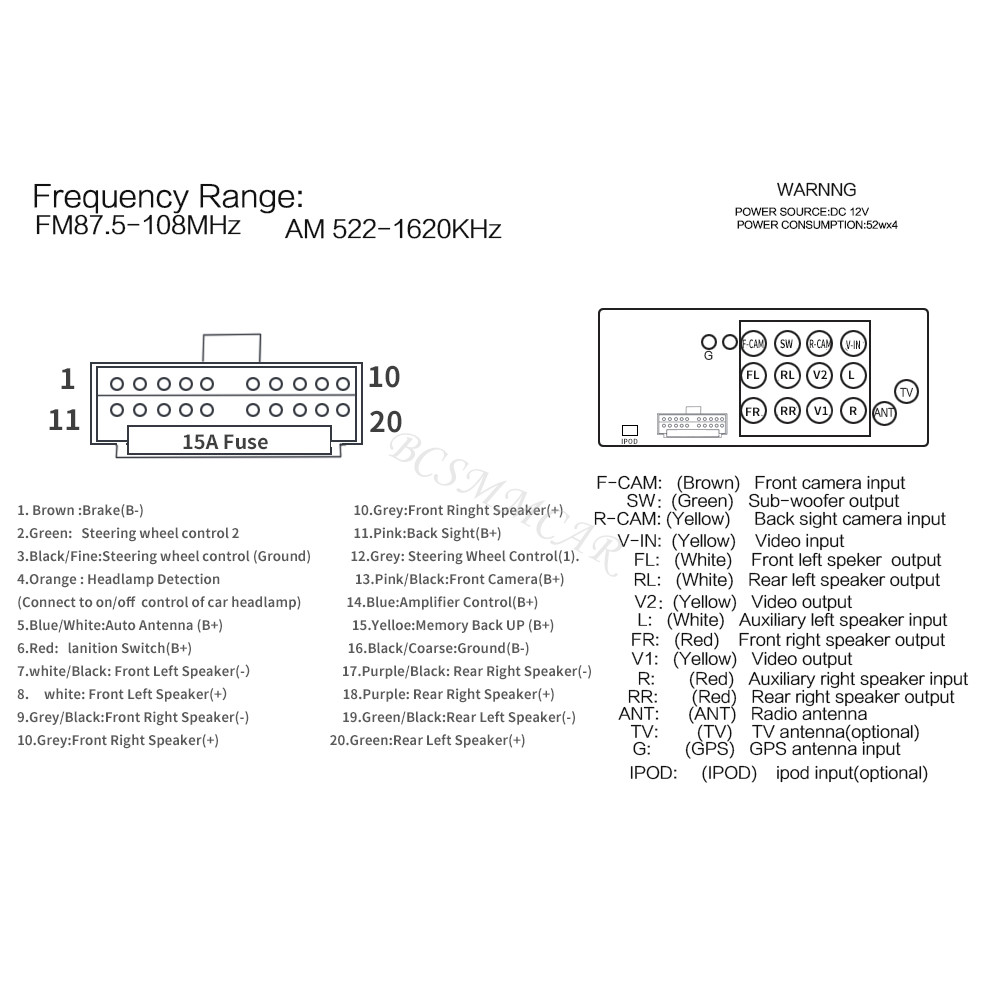

FM:87.5-108MHz
AM:522-1620KHz

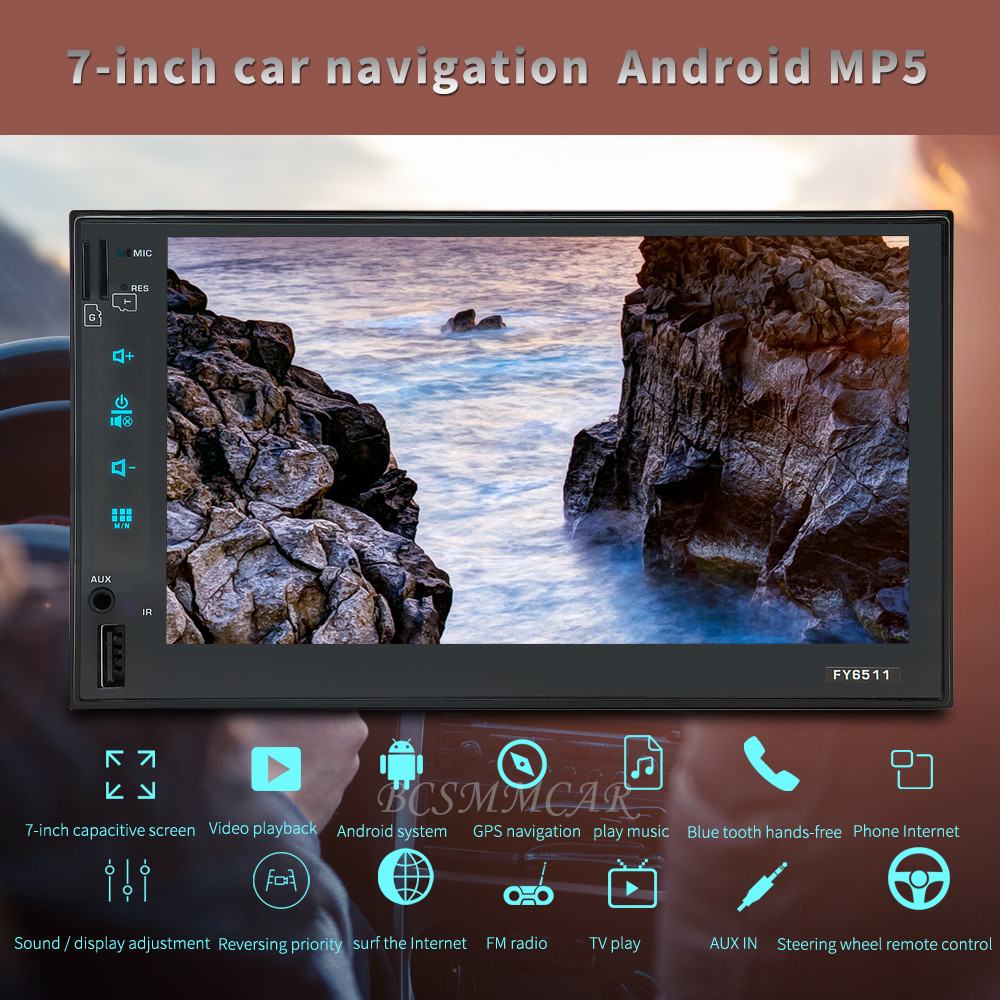

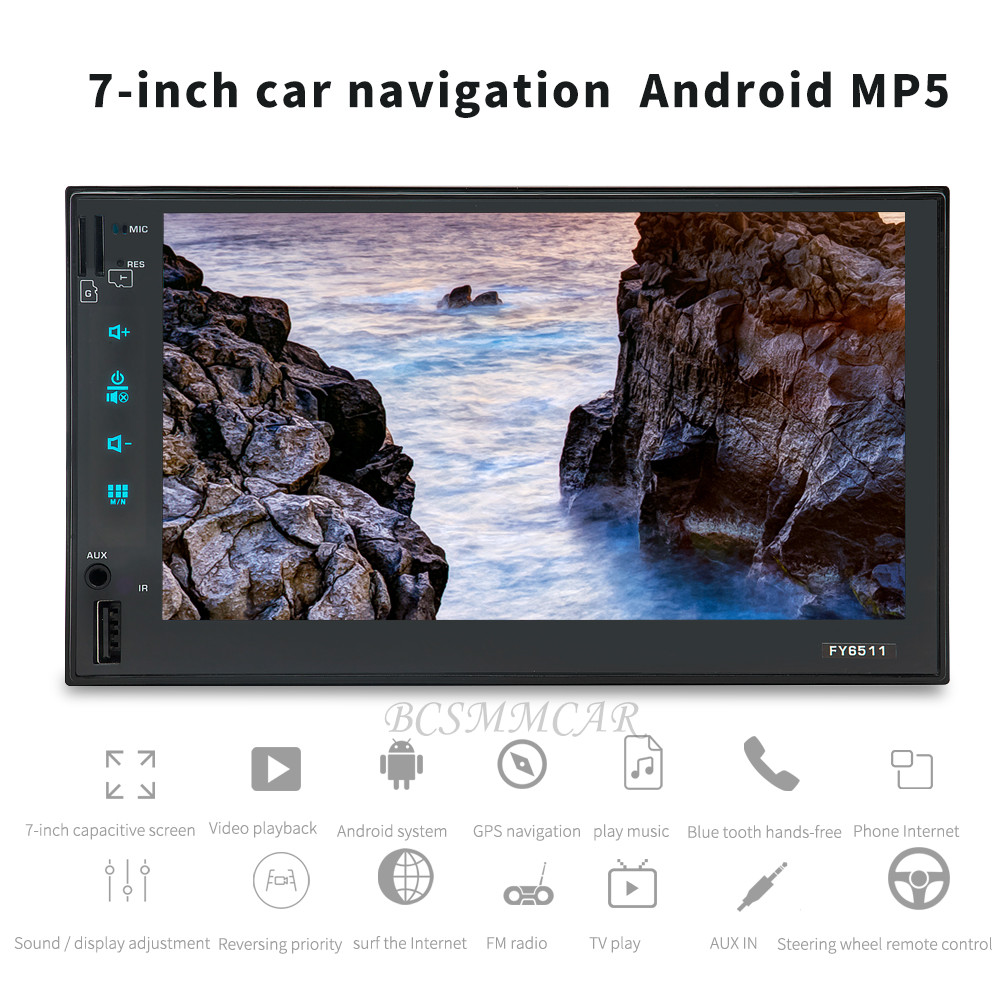

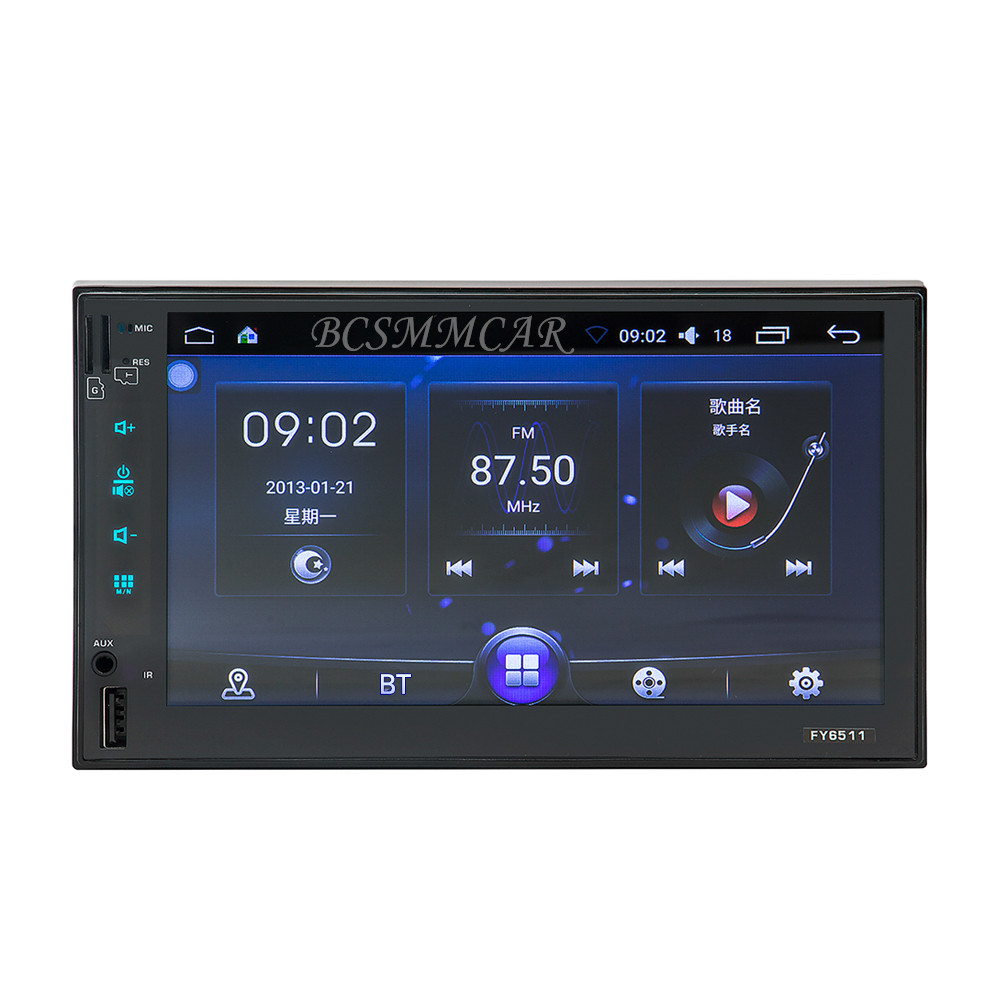

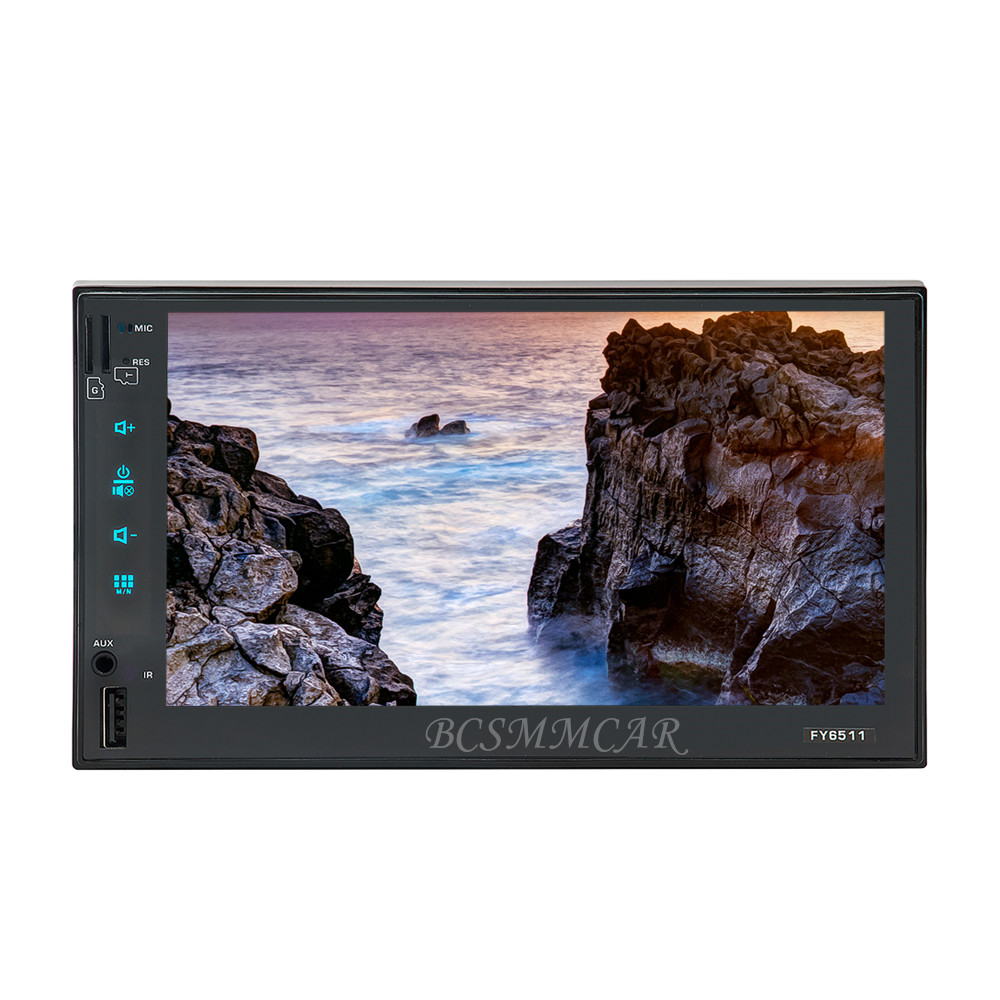

Display screen size 7 inches
Resolution 1024 * 600,
Interface TTL, LVDS
Color depth 16 bit 24 bit
Touch screen capacitive screen
GPS
GPS (USA) support
Beidou (China) does not support it
GLONASS (Russia) support
WIFI model and supported protocol 802.11 b/g/n
Bluetooth model and supported protocol Bluetooth 4.0; HFP HSP; A2DP; AVRCP, Phone Book Download
Network model and supporting protocol
2G(GSM GPRS),3.G(WVCDMA/HSDPA 21.1Mbit/s)
Video playback format 1080P@60FPS (H264 K265)
4 USB interface channels and formats, USB 2.0
SD interface channel 2, SD 3.0
Xiezhan serial port channel and baud rate 1 channel, supporting baud rate 115200
MIC input channel and format 1-channel analog input
Video input supports formats including 3 CVBS/S-Video/YUV
Audio input channel 4 stereo inputs
Audio output channel 4-channel output
Sound processing model Rohm BD37534, 3-segment EQ
Support USB dash cam function
Working temperature range -40 ° C+85 ° C
Working voltage range 9V-16V
Fast wake-up current ≤ 9MA after ACC interruption in sleep mode
